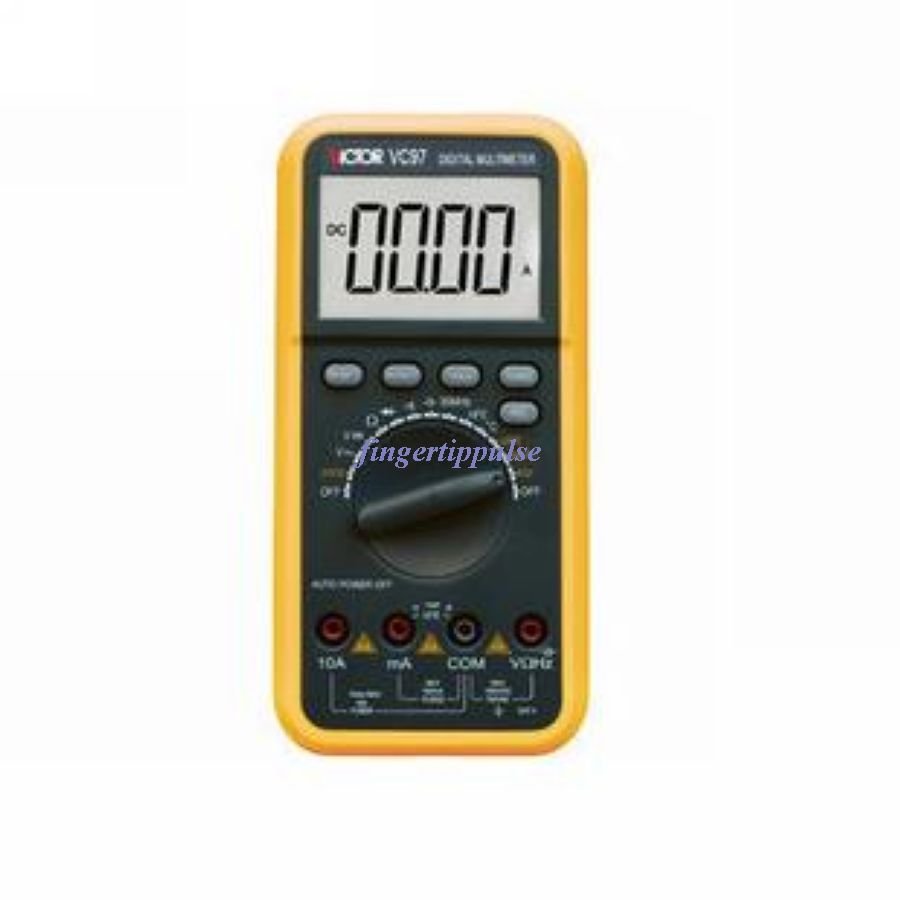

This Professional Auto-range Digital Multimeter (VC97) is made by VICTOR brand. It is a high performance and accuracy with large LCD display to measure DC and AC voltage, DC and AC current, Resistance, Capacitance, Frequency, Temperature, Duty circle, Transistor, Diode and Continuity Test.
The designed parameter include: unit indication, data hold (HOLD), relatively measuring (REL), AUTO/MANUAL range, auto off and buzzer sounds. This multimeter is most suitable for use on production lines or lab, R & D, maintenance and repairing work.
Dual-slop DC/AC converter CMOS technology for auto-zero, polarity selection and over-range indication.
Full overload protection
New type holster, streamline design
3 ¾ digit Large LCD Display
Metallic screen board with stronger antimagnetic and anti-interferential function.
Full function protection, anti-high voltage circuit design.
Low battery display indication
Display: 3 ¾ digit Large LCD with a max readings of 3999.
Measuring method: Dual-slope integrating A/D Converter System featuring CMOS technology for auto-zero, polarity selection, and over-range indication.
Sampling Rate: approx. 3 Times / Second
Max Common Mode Voltage: 500V DC/AC RMS
Range Selection Method: Automatic and Manual
Polarity: Automatic Negative Polarity Indication
Over range indication: Only the MSD "OL" display
Safety Standards: CE; EMC/LVD; IEC1010
Pollution Degree 2, Over voltage category II or double insulation II
Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)
Operating Humidity: below 80% RH
Storage Temperature: -10 ~ 50 °C (14 ~ 122 °F)
Storage Humidity: below 80% RH
Low battery display auto turn off (after turn on 15 minutes)
Power: 2 x 1.5 V AAA batteries (not included)
Dimensions: 190 (H) x 93.5 (W) x 37 (D) mm (7.48' x 3.68' x 1.46' inch)
Weight: approx. 420g (14.82 oz)
Accuracy is ±(percentage of reading + number of digit) at (23±5) °C,
