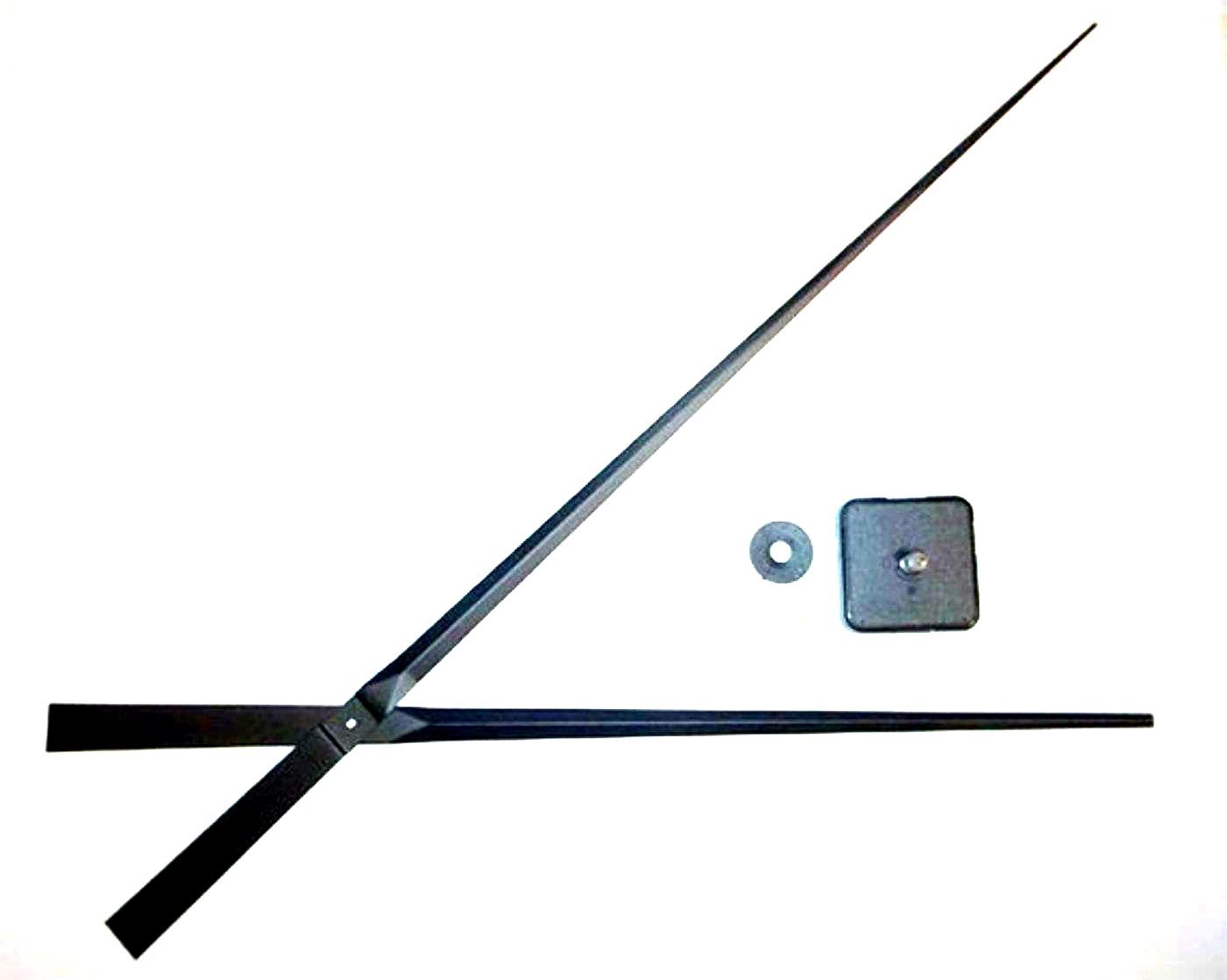

Now you can make that large clock with this high torque quartz movement and large 17.5" balanced metal hands. Includes high torque motor 1/2" threaded shaft with long 17.5" hands
This is a continuous motion high torque motor, super quiet, no advancing (stepping) of gears. Those of you with keen hearing will greatly appreciate it's quietness
high torque movement:
case size: 2-3/16" sq. x 5/8" thick
threaded shaft is 1/2" x 5/16" dia.
total shaft length is 3/4", including hand stem
17-1/2" balanced hands:
minute hand is 17-1/2"" long, from center of mounting hole to end tip, total length is 22-1/2" end to end and counterbalanced (weight to balance hand)
hour hand is 13" from end tip to center of mounting hole, total length is 18" (end to end)
For direct wall mounting of motor you may need a metal clock hanger (not incl.)
3 yr. warranty on factory defects
requires one "AA" battery (not incl.)
brass mounting hardware ( hex and kurl nuts, brass washer and rubber washer)
Securely packed in 2.5x24" mailing tube
I also have 1/4" and 3/8" threaded shaft, optional, in place of the furnished 1/2" shaft. If so, you may note on checkout.
IF YOU NEED A PHOTO OF ASSEMBLY, I WILL NEED YOUR EMAIL ADDRESS IN ORDER TO SEND YOU ONE.
For larger volume please see my other listings
NOTE ON MEASURING:
Shaft length is brass threaded portion that must pass thru your clock face, leaving a couple of threads to mount retaining nut.
(ex., if working with 1/4" tile as your clockface....then order the 38" threaded shaft)
MEASURING DIAL FOR HAND SIZE: measure from top of #12 to bottom of #6, divide in half. This will give your approx. minute hand length
