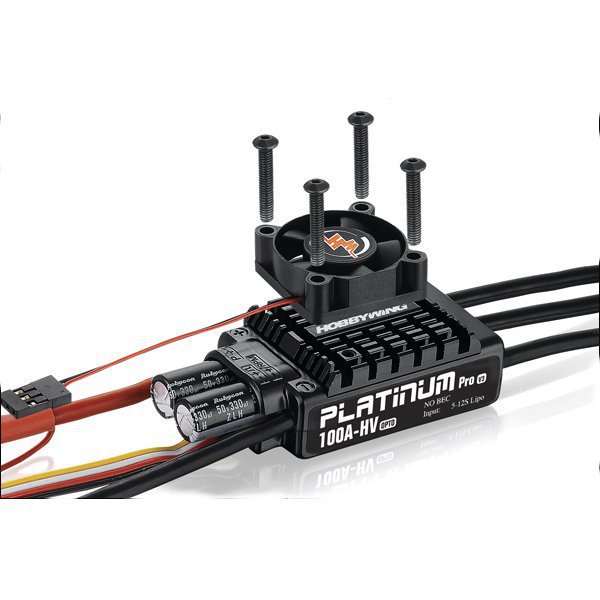

HobbyWing Platinum-100A-HV-V3 Brushless ESC For RC Models
Brand Name: Hobbywing
Item Name: Platinum-100A-HV-V3
Application 550-600 classes helicopter (600-620mm blade)
Input 5-12S LiPo, 16.8-50.4V
Cont. / Burst Current Cont. 100A / Burst 140A (in 10 sec)
BEC Without built-in BEC
Programming Port The programming port can provide 5.5V/100mA power supply to the program box or the external cooling fan
Throttle Signal and RPM signal Signal transferred via opto electronic coupler
Input / output Wires Input:12AWG / Output:12AWG
Weight/Size 104g / 77x35x21mm(without cooling fan),
110g / 77x35x32mm(with cooling)
- High-performance microprocessor with the operating frequency up to 50MHz brings excellent compatibility (with most motors in the market) and high driving efficiency.
- The maximum motor speed can reach 210000 RPM (for 2-pole), 70000 RPM (for 6-pole) and 35000 RPM (for 12-pole).
- Multiple flight modes: Airplane Fixed Wing / Heli Governor Off / Heli Governor (Elf) / Heli Governor Store.
- Adjustable throttle range, compatible with various transmitters.
- Microprocessor powered by independent DC regulator has better anti-interference performance, which greatly reduces the risk of losing control.
- Brand new governor program brings excellent speed-governing effect.
- ”Restart in auto rotation" can manually interrupt the auto rotation and quickly restart the motor to avoid crashes caused by incorrect operations.
- Independent output port for RPM (that is: motor speed) signals.
- Compatible LCD program box (optional accessory), its simple and visual interface allows users to set/revise all the ESC parameters easily.
(For detailed information, please refer to User Manual of LCD Program Box.)
- Upgradeable firmware, you can upgrade the ESC after connecting it to a PC via the USB cable on the program box.
- The independent port, for connecting the program box and setting parameters, can also be the output port of the running status data of the ESC. When coordinating with the data transmission module, it can make the real-time data monitoring and logging possible.
- Low-voltage cutoff protection / Throttle signal loss protection effectively prolong the service life of the ESC.
- The anti-spark circuit on the input wires eliminates the electro spark created when connecting the battery pack to the ESC.
Priority Direct Mail 6-9 business U.S. & Australia Orders
Standard Registered Air Shipping 7-20 day delivery U.K. and other destinations.
1 Hobbywing Platinum-100A-HV-V3 ESC
