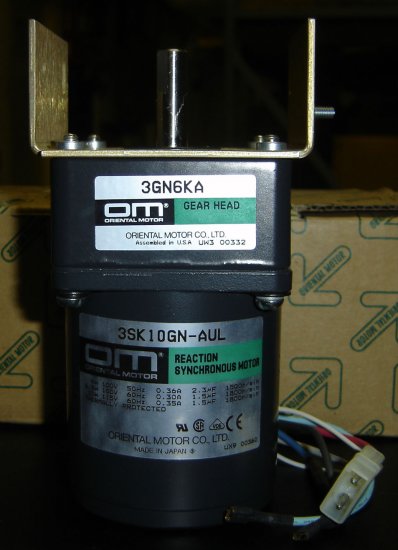

Item # 3SK10GN-AUL Synchronous Motor / 3GN6KA Gearhead
Compare to List Price: $166.00
Synchronous motors provide rotation at a fixed speed in synchronization with the frequency of the power source, regardless of fluctuation of the load or line voltage.
Product Line: ORIENTAL MOTOR ®
Motor Type: Synchronous
Motor Frame Size: 2.76 in. sq.
Output Power HP (W): 1/75 HP (10W)
Voltage (VAC): Single-Phase 115 VAC
Frequency (Hz): 60
Gear Ratio (X:1): 6 :1
Gear/ Shaft Type: Parallel Shaft
Rated Torque (lb-in): 2.3
Rated Speed (rpm): 300
Permissible Load Inertia: 27.72 oz-in2
RoHS Compliant: No
Safety Standards: UL CSA EN CE
CE Marking: Low Voltage Directives
Insulation Resistance: 100 M Ω or more when 500 VDC is applied between the windings and the frame after rated motor operation under normal ambient temperature and humidity.
Dielectric Strength: Sufficient to withstand 1.5 kV at 60 Hz applied between the windings and the frame for 1 minute after rated motor operation under normal ambient temperature and humidity.
Temperature Rise: Temperature rise of windings are 135°F (75°C) or less measured by the resistance change method after rated motor operation.
Insulation Class: UL/CSA Standard Class A [221°F (105°C)], EN Standard Class E [248°F (120°C)]
