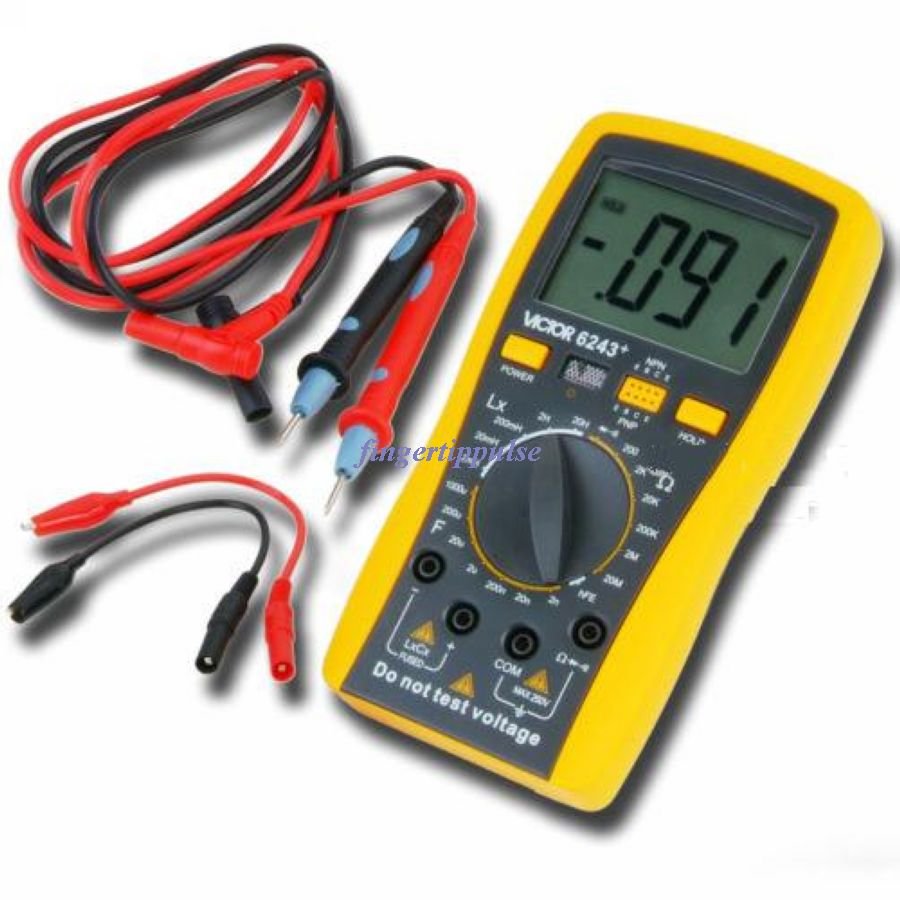

This professional LCR meter (VC6243+) is made by VICTOR brand. It is a stable and accurate instrument with Large 3 ½ LCD display. It is widely used on measuring Inductance, Resistance, Capacitance, Diode, Transistor Test and Continuity Buzzer. It is an ideal tool for lab, factory and family use.
New type holster, streamline design
3 ½ digit Large LCD Display
Metallic screen board with stronger antimagnetic and anti-interferential function.
Low battery display indication
Meet IEC1010 standards
Display: 3 ½ digit Large LCD with a max readings of 1999.
Auto Polarity indication
Measuring method: Dual-slope A/D conversion
Sampling Rate: approx. 3 Times / Second
Over range indication: MSD displays "1"
Operating Temperature: 0 – 40 °C (32 - 104 °F)
Operating Humidity: below 80% R.H.
Low battery display auto turn off (after turn on 15 minutes)
Power: 1 x 9 V PP3 battery (not included)
Dimensions: 189 (H) x 97 (W) x 35 (D) mm (7.44' x 3.82' x 1.38' inch)
Weight: approx. 380 g (13.4 oz)
Inductance 2 mH – 20 H
Capacitance 2 nF - 1000 μF
Resistance 200 Ω – 20 MΩ
Diode Test Yes
Transistor Test Yes
Continuity Test Yes
Data Hold Yes
Accuracy is ±(percentage of reading + number of digit) at (23±5) °C,
