Fargo R4DI is an internet control and monitoring system with a built-in web server with POE and no Third Party Server. You have access to control and monitoring most devices using your computer, tablet or smart phone with a web browser from anywhere. You can use this unit to turn devices on/off, check the status of the devices, monitoring for garage door/gate, room entry, sprinkler, and more.Take action remotely with your smart phone/tablet or computer from anywhere. Allow automatic shutdown & actions as events occur/resolve.

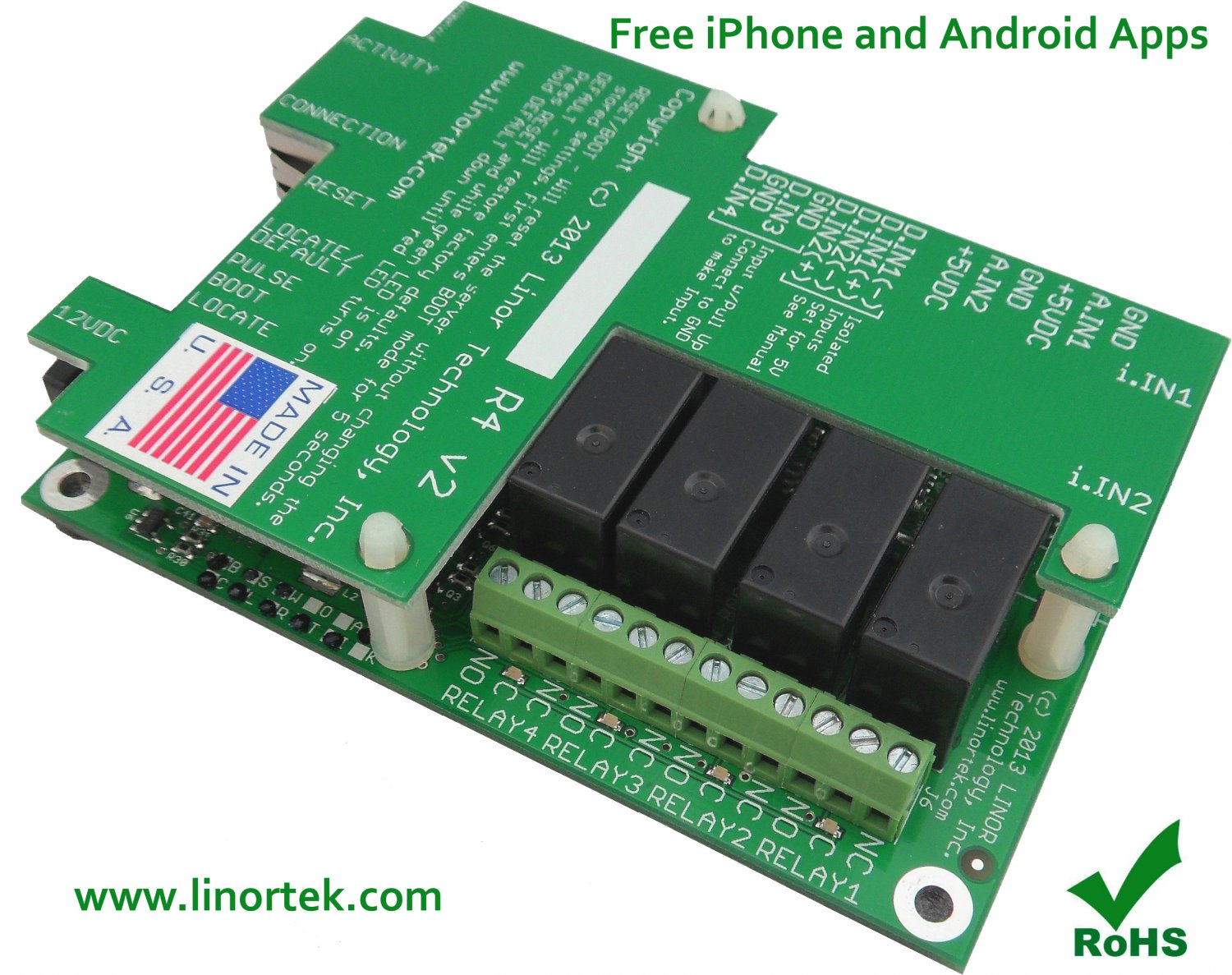

The web server stack executes on a 32 bit processor and utilizes standard 10M/100M interface, making it able to communicate with most internet browsers and devices. The Fargo R4DI has 4 relays and 4 digital inputs. These inputs are optically isolated (for protection of the server).
he Fargo R4DI is USA made.
Fargo Free Phone Apps
Fargo R4DI Android and iPhone Apps are now available. You can download the apps to your devices for FREE! Check our website for more details: www.linortek.com

The Key Features
POE with built-in web server with all required software for remote control and monitoring from any internet web browser.
4 Digital Inputs
Free iPhone and Android Apps.
No 3rd party server and no monthly fee.
Built-in temperature and power supply sensor.
Email notification of various user selectable events (SSL is not supported at this time).
Ability to setup multiple schedules for relays.
A 10,000 item system log that is able to record system transactions (some are user selectable).
NTP automatic internet time setting.
Completely configurable network settings including but not limited to DHCP, SNMP, DYNDNS.
Two level password protection.
Ability to directly connect to a computer (cross over cable may be required).
Program and web page interface are up-gradable over the internet.
Specifications
4 1-Form-C relays 3 conductor screw terminal connector for each (normally open/common/normally closed)
4 Opto isolated digital inputs. 2 conductor screw terminal connectors for each.
10M/100M RJ45 Internet interface with connection and activity LEDs
POE or 12VDC @500mA (nominal) (110/220VAC input plug in power supply included)
1M Internet cable
Reset push-button
Control push-button
Status LEDs (pulse, bootloader, and locate)
Dimensions 74mm x 100mm x 20mm, mounting holes 64mm x 92mm Ф 3.2mm 4 places
Applications
Manual or automatic device restart if event occur
Management/monitoring for industrial
Sensor information processing
Garage door/motorized gate
Irrigation system
Motor/pump
HVAC system
Setting up
Connect the device to your network and it is ready to go. Use our "Discover" program to automatically locate your device. Click on the IP address and the web page opens up. Login and start using the product. It is that easy.
What's in the box:

Please inspect the contents of you Fargo product kit. Each Fargo is sent in its own box and includes:

Fargo web server board
1M CAT5 patch cord
1A 12V power supply
Getting Started guide
A full version of the manual as well as new software for download is available at our website linortek dot com.

Fargo for Customization

As we design and build our own product, we are also able to create a totally custom hardware device. This may be used to solve specific problems or for installation into a product that you manufacture. Utilizing our standard hardware and software building blocks, we can put together a custom design in little time and at low NRE. This also means that your new product carries a tried and true design with little or no start up difficulties.

All of our servers are built on the same basic TCP/IP platform providing a more stable and tested product. This stack executes on a 32 bit processor and utilizes standard interfaces making it able to communicate with most internet browsers and devices.


Linor Technology is also able to create totally custom web pages for it’s servers. Maybe a look and feel or a special way to present data, we can do the job. New software may be uploaded to fix bugs or add features. This is also customizable if your requirements are outside of our normal features. Feel free to contact us for customization through our website at linortek dot com.
