HDMI digital audio to HDMI + Audio Decoder Audio Edid Setting +Spdif +5.1CH+HP Converter Support CEC and HDCP up to 1080P/60Hz

Specifications

New arrival digital audio decoder HDMI to HDMI with Audio Decoder


Model: HD-HDAD


Digital Audio Decoder


support 5.1ch


High Quality digital audio decoder HDMI TO HDMI + Audio Decoder


Model:HD-HDAD



Support HDMI input up to 1080P/60Hz, supports 3D



Introduction:



Digital Audio Decoder: Used 24-bit audio DSP, 96KHz digital receivers, and 192KHz/24bit ADC and

DAC.



Support Dolby Digital AC-3 Dolby Pro Logic, DTS, PCM and other digital audio format source



decode, a variety of sound field and the replay results of two listening modes, 5.1 analog audio output,



will auto work with different amplifier and speakers to get different sound effects, easy to connect



many entertainment devices which with optical and coaxial digital signal and analog output signals (such



as: set-top boxes, HD players, Blu-ray DVD, PS2, PS3, XBOX360).




Features:



1.1X HDMI input and 1X HDMI output,can sync separation HDMI audio signal. Supports 1x SPDIF



optical digital audio output, 6 channel RCA analog audio output, and 1x headphone jack output.



2.Support HDMI input up to 1080P/60Hz, supports 3D (24/30fs)


3.Support CEC and HDCP


4.Supports 3 modes of EDID management for audio formats, can switch among built-in EDID



(2CH/5.1CH) and external EDID (TV).


5.Uses 24 bit/96KHz audio DSP and 24bit /192KHz DAC


6.Support digital audio formats: Dolby digital (AC3), DTS, LPCM, automatic identification signal



format


7.Headphone amplifier output, can drive the general 3.5mm earphone


8.High tone quality, low noise


9.DC5V/1A power adapter





Specification:



HDMI resolution ............................................ up to 1080P/50/60fs(3D 24/30fs)



Support video color format ........................................24bit/deep color 30bit,36bit



HDMI Audio Format...DTS-HD/Dolby-TrueHD/LPCM 2/5.1/7.1CH/DTS/Dolby-AC3/DSD



Digital audio decode format................................Dolby Digital (AC3)/DTS/LPCM 2CH



HDMI Max bandwidth............................................................................225MHz



HDMI Max baud rate...........................................................................6.75Gbps



Input/Output TMDS signal ...............................................0.5~1.5Volts p-p(TTL)



Input/Output DDC signal .......................................................... 5Volts p-p (TTL)



DSP sample frequency range........................................................... 32~96 KHz



DSP Bit rate range............................................................................16~24 Bit



Analog output level(1kHz@0dB)............................................................1V.. RMS



SNR @ 0dB(CCIR/ARM)............................................................................≥85dB



Distortion...............................................................................................≤0.1%



Frequency response........................................................................20Hz~20KHz



Headphone output power (1kHz@0dB RL=32).............................................20mW



HDMI input cable distance.................................≤15m AWG26 HDMI standard cable



HDMI output cable distance..............................≤18m AWG26 HDMI standard cable



Max working current ................................................................................500mA



Power adapter format Input ......................... AC 100V~240V 50HZ/60Hz, DC5V/1A



Operating Temperature range .......................................................... -10 to +55°



Storage Temperature range............................................................. -20 to +60°



Operating Humidity range ...................................10 to 90%RH (No Condensation)



Storage Humidity range........................................5 to 95%RH (No Condensation)



Case Dimension (L x W x H) ..................................................... 139x64x22 (mm)



Weight ................................................................................................... 220g

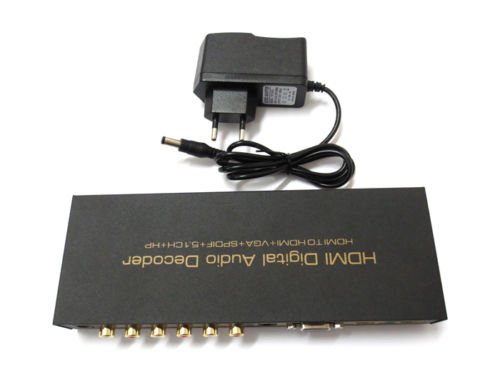

PACKAGE CONTENTS:

1. Main unit

2. AC power adapter

3. User manual
