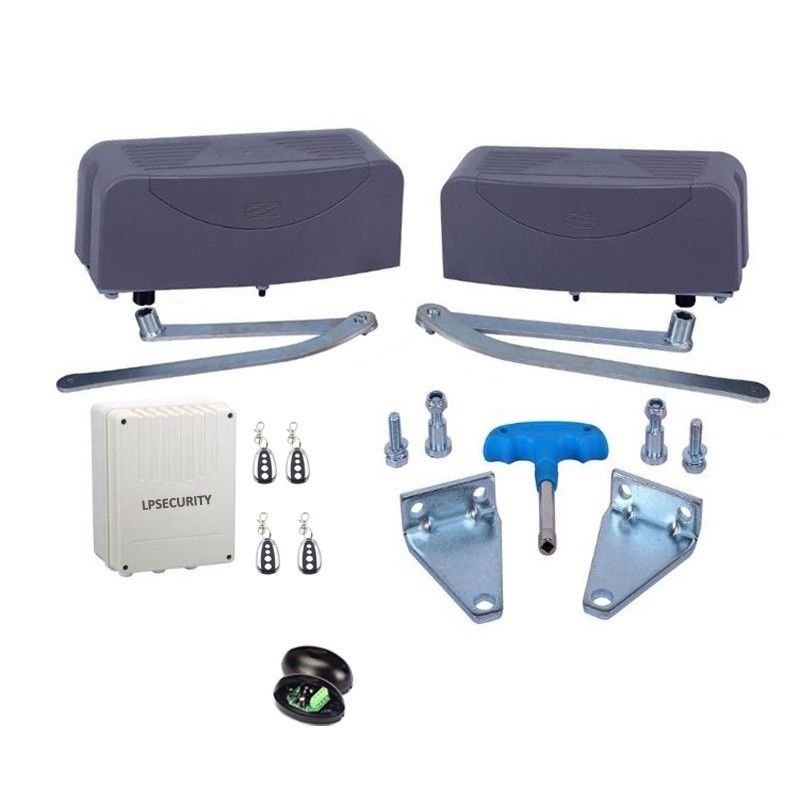

Articulated Swing Gate Opener is designed for residential/commercial applications. Stay warm and dry in your vehicle. This Swing Opener will handle dual swinging gates. Handles each gates up to 2.5m Long and 400KG PER LEARF; there is soft start, soft stop function, emergency release key in case of power failure. Suitable for pull to open or push to open without any extra accessory parts. Easy installation and low maintenance.
Soft start slow stop, automatic close, obstacle detection by automatic reversng.
Interface for GSM, infrared sensor, alarm light, wall button.
Separate control unit, easy to install.
Power saving mode, remote control automatic learning.
Motor working time is adjustable.
Working duty S2 15 minutes
Operating cycle 10 seconds per 90 (approx)
Max. single - leaf weight 400 kg per leaf
Max. single - leaf length 2.5 m
DSPS device Electronic timing tracker
Gearbox Worm gear
Limit switch Mechanical limit switch
Safety barrier Infrared sensor (optional)
Main supply 110V, 220V , 60 Hz / 50 Hz
Remote control Single button mode
Temperature -20 ~ + 50 centi degree
Protection Class IP54
