NSEE PK400AC-2 800KG/1800LBS Opener Dual Articulated Swing Gate Door Operator

Articulated Swing Gate Opener is designed for residential/commercial applications. Stay warm and dry in your vehicle. This Swing Opener will handle dual swinging gates. Handles each gates up to 2.5m Long and 400KG PER LEARF; there is soft start, soft stop function, emergency release key in case of power failure. Suitable for pull to open or push to open without any extra accessory parts. Easy installation and low maintenance.

Soft start slow stop, automatic close, obstacle detection by automatic reversng.
Interface for GSM, infrared sensor, alarm light, wall button.
Separate control unit, easy to install.
Power saving mode, remote control automatic learning.
Motor working time is adjustable.
Technical data

Type PK400AC
Motor power

200W
Working duty S2 15 minutes
Operating cycle 10 seconds per 90 (approx)
Max. single - leaf weight 400 kg per leaf
Max. single - leaf length 2.5 m
DSPS device Electronic timing tracker
Gearbox Worm gear
Limit switch Mechanical limit switch
Safety barrier Infrared sensor (optional)
Main supply 110V, 220V , 60 Hz / 50 Hz
Remote control Single button mode
Temperature -20 ~ + 50 centi degree
Protection Class IP54

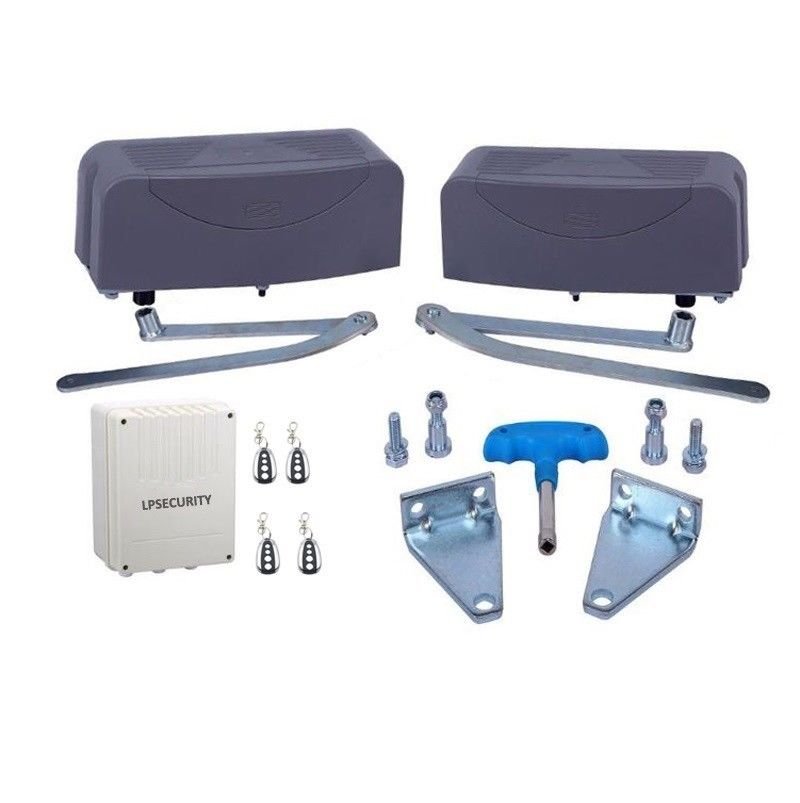

Kit Includes:
1) Articulated Arms (2 PCS)
2) Installation Hardware
3) Remote Control (4 PCS)
4) Manual

For Voltage we can send 110V or 220V (Leave us a message with the voltage you like to get or we will send it accordingly to your region)
