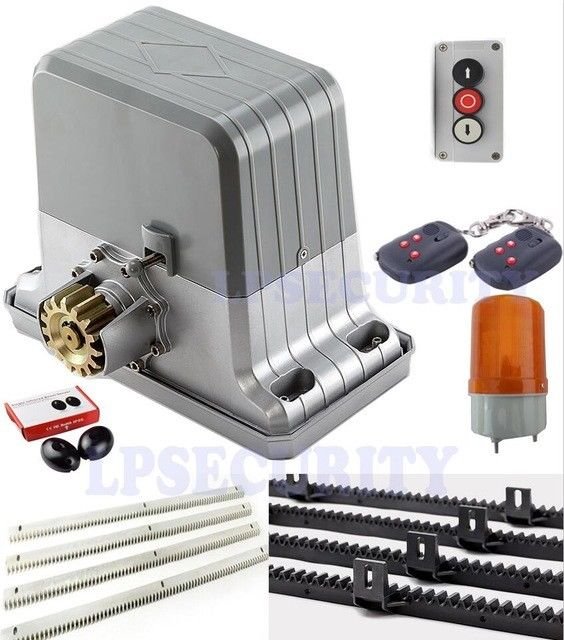

This is a conventional sliding gate operator, with brand-new design, brand-new clutch structure, fashionable exterior design and brand-new control technique, making the motor more humanistic. Furthermore, the integrated electromechanical design and the streamlined appearance also make our product look more fashionable and elegant. Racks and pinions. Kit 2 Includes: 1. Sliding Gate Operator (1) (Set) (110v). 2. Remote Controller (4) (PCs). 3. Internal Hex-angular Bolt (4) (PCs). 4. Internal Hex-angular Bolt (4) (PCs). 5. Left Limit Iron (1) (PCs). 6. Right Limit Iron (1) (PCs). 7. Base (1) (PCs). 8. Release Keys (2) (PCs). 9. Manual (1) (PCs). 10. 18ft of Steel or Nylon Rack (6 PCs) (Customer Choice).11. Pair of Photo Eye (1) (Pair) 12. Strobe Light Lamp with Siren (1) (PCs)13. Push Button (1) (PCs) *** One year warranty from the manufacturer *** *** Life-long repairing with charge offered *** *** Technical support *** Functions: 1. Integrated electromechanical design 2. Electronic soft start 3. Reversing on obstacle 4. Infrared photocell socket 5. Alarm light socket 6. Wires control and remote control 7. Delay closing 8. Reversing sensitivity adjustable 9. Bus-mastering (various operation ways) 10. Automatic warm-up Please leave us a message with your voltage requirement (110V or 220V), if no message is left we will send according to your country voltagePlease leave us a message with your rack requirement (if no message is left we will send Nylon Rack) Specifications: Voltage 220v ± 10% 110v ± 10% Frequency 50Hz 60Hz Current 2.7A 5.8A Motor Range AC 220V/110V Capacitor 20µ F 60µ F+14µ F Power 350 W Torque 35nm Motor number M=4 Motor speed 1350rpm 1620rpm Gear speed 58.8rpm 70.2rpm Travel speed 11m/min 13.2m/min Working temperature -40⁰C ~55⁰C / -104⁰F ~131⁰F Overload protection temperature 130⁰C / 266⁰F Motor marking technique Die casting aluminum alloy Manual Release Yes Remote distance ≥ 30m / 100ft 4. Functions and Features 4.1 Integrated structure of the mechanic and electron. No need to install other controllers. 4.2 Electronic soft-start. 4.3 Automatically restraining when meets obstacle. 4.4 Crash proof and automatically restraining socket. 4.5 Crash proof (photocell). 4.6 Alarm light socket. 4.7 Line control and remote control are optional. 4.8 Intelligent automatic heating function. 4.9 Automatically increase the temperature when the temperature is below 0 degree. 5.1 Motor base and it's installation 1.Motor base installation: set the installation position of the base tray according to the size of the motor and the height of the installation position of the gear rack. Then Embed the bolts in advanced or use the expansion bolts to embed the base into the cement foundation. 2. If the gear rack has already been installed, fix the motor to the base and turn the clutch with the clutch key to the off position, then make the gear of the motor suit right to the gear rack, then the position of the base can be set. Take off the motor and fix the base. 5.2 Motor installation 1) Put the motor on the base, fix up the motor with hexangular screws. 2) Loosen the four screws on the outer shell and remove the shell. Connect the wire according to the electric diagram. After debugging, install the shell and fix it with bolts. 5.3 Rack installation Make the gear of the gear rack towards the floor. Make the gear of the rack fit the gear of the motor. Fasten the gear rack to the door with the screws. Push the gate and make it move the whole route. Fasten the gear to the gate after assuring that the gate run smoothly the whole route. Rack is usually installed piece after piece. To avoid dithering or blocking, please adjust the gap of the gear rack. We suggest one way( refer to Fig-3): fix up the rack1 and rack2 after adjusting the two racks with the small adjusting rack. 5.4 Travel limit iron installation After the gear racks are fixed, open the clutch device and make the motor in idling status. Put the motor onto the base tray. Adjust the gear of the motor and make it fit the racks of the door. After fixing the motor by bolts, connect the power for it. Press the 'close' button of the controller, the motor will work towards the closing direction in loosening status. Move the gate to the end position of the closing gate by hands. When the gate completely closes, check whether the limit iron could touch the spring limit switch and make the motor stop. If the limit iron can not touch the spring limit switch, loosen the screws of the limit iron and move the limit iron to the right position and fasten it. Adjust the position of it in the same way again. 5.5 Function of release When the release is opened, we can push the gate by hands, when the release is closed, the gate can be opened or closed by electricity and stop automatically when meets the limit iron. 5.6 Installation of photocell 1. Loosen the screws and take off the water-proof cover. 2.Put photocell signal wire and power wire through the hole of the base. Connect the wire according to the electric diagram. 3. Fix the photocell base with screws to appointed position. 4. Put on the top lid and fasten it with screws. (Notice: During the installation, do not take off the rubber ring) 6.Installation of Electric Part 6.1 The electric control panel is set inside the outer shell and installed together with the motor. 6.2 For the electric connection, please refer to the electric connection diagram. 7. Debugging and instruction of use 7. 1 Debugging 1). Check the electric connections to make sure that the wiring has been connected well. Turn the power on and make the motor run itself. Send an “open” signal, then observe whether the rotational direction of the gear is the same as the direction of opening the gate. If not, send a “stop” signal to make the motor stop running, and then rotate the direction adjustment switch to adjust the running direction of the motor. Send an “open” signal again, make sure the rotation are of the same. then send a “stop” signal to stop the motor. Adjust the closing direction in the same way. 2). Adjustment of the limit switch. Send an “open” signal, press the limit switch towards the direction of opening the gate, observe whether the motor is stopped and limited. if not, rotate the limit adjustment switch to adjust again to make sure the opening limit switch functions. Then send a “close” signal, adjust the closing limit switch in the same way. 3). Check whether the gate is fixed well. Rotate the key of the clutch to opening direction according to the tips on the cover of the lock. Move the gate back and forth through the route by hand to see if it runs well or blocked. If the gate not move freely, adjust the position of the motor or the rack until it runs freely. 4). Close the clutch, if the gate runs in the opening direction, it can not respond to the CLOSE command, but can respond to the STOP, OPEN and LIMIT CLOSING command. If the gate runs in the closing direction, it cannot respond to the OPEN, STOP, LIMIT CLOSING and LIMIT OPENING command, but the OPEN and LIMIT CLOSING direction light are on. 5). Three means to your safety: loop detector, photocell, crash proof. When the gate is opening, these three functions can not be applied. When the gate is closing and meets some obstacles, the direction lights of the opening and closing limit are on at the same time and then turn to opening limit. When the signal of the infrared photocell is cut, the gate will turn to the opening limit and open till the direction light of the opening limit is on all the time. When there is a signal to the loop detector, the gate will open for 10 seconds and then close automatically. You can adjust the crash proof sensitivity on the control panel. Rotate the clockwise, the sensitivity will be higher. 6). Temperature control function, when the system detects that the ambient temperature is below 0 degrees, the motor will heat automatically. 7. 2 Instruction of use 1 After checking and debugging all the parts, fix up the motor shell, close the clutch and the cover of the lock hole. 2). When the power is cut off, open the clutch. Then move the gate manually. When the power is on, close the clutch and run it by electricity. ). 8. Maintain 8. 1 The antifreeze lubricant oil has been applied to the sliding gate operator. There is no need to add the oil before using. 8. 2 After using the sliding gate operator for one month, please check the antifreeze lubricant oil. If it needs to be changed, please change the oil with the same type. Then check the oil every year. If the oil turns bad, change the oil with the same type. 8. 3 After using the gate operator for some time, please check if any parts are loose. If they turn loose, please tighten them. 9. Troubleshooting 9.1 The motor runs but the sliding gate operator doesn't work. A: Check whether the clutch is closed. 9.2 The power indicator light doesn't flash and the key doesn't react. A: Check whether power is connected right. B: Check whether the fusel is burned, it yes, please exchange it. 9.3 The opening and closing limit can not work. A: Check whether the limit adjustment switch is installed right. B: Check whether the limit iron is installed right. Adjust the position of the limit iron. 9.4 Crash proof is not effective. A: Check whether the connection of crash proof is correct. B: Check whether the photocell is installed right. C: Check whether the connection of the wire of the loop detector is right . 9.5 When the gate just close up, it turns to open. A: Check whether the voltage is normal. B: If the crash proof equipment is installed, please check whether it works well. 9.6 The remote control doesn't work A: Check whether the battery is low. If yes, change it. B: Check whether the code of the remote control is the same with the code of the control panel. 10. Remote Controller Coding If the remote controller or the radio emitter doesn't match the code of the control panel, pleas
