MP-661K Drozd, Blackbird magazine modernization spare parts tuning Baikal, upgrade details for update, newest transformable full repair kit "Scorpio 6".
The proposed newest, advanced, fully transformable repair kit "Scorpio 6" is universal and therefore ideal for all modifications and versions Baikal MP-661K "Drozd". This set is universal and can be supplied in two versions at the request of the buyer:

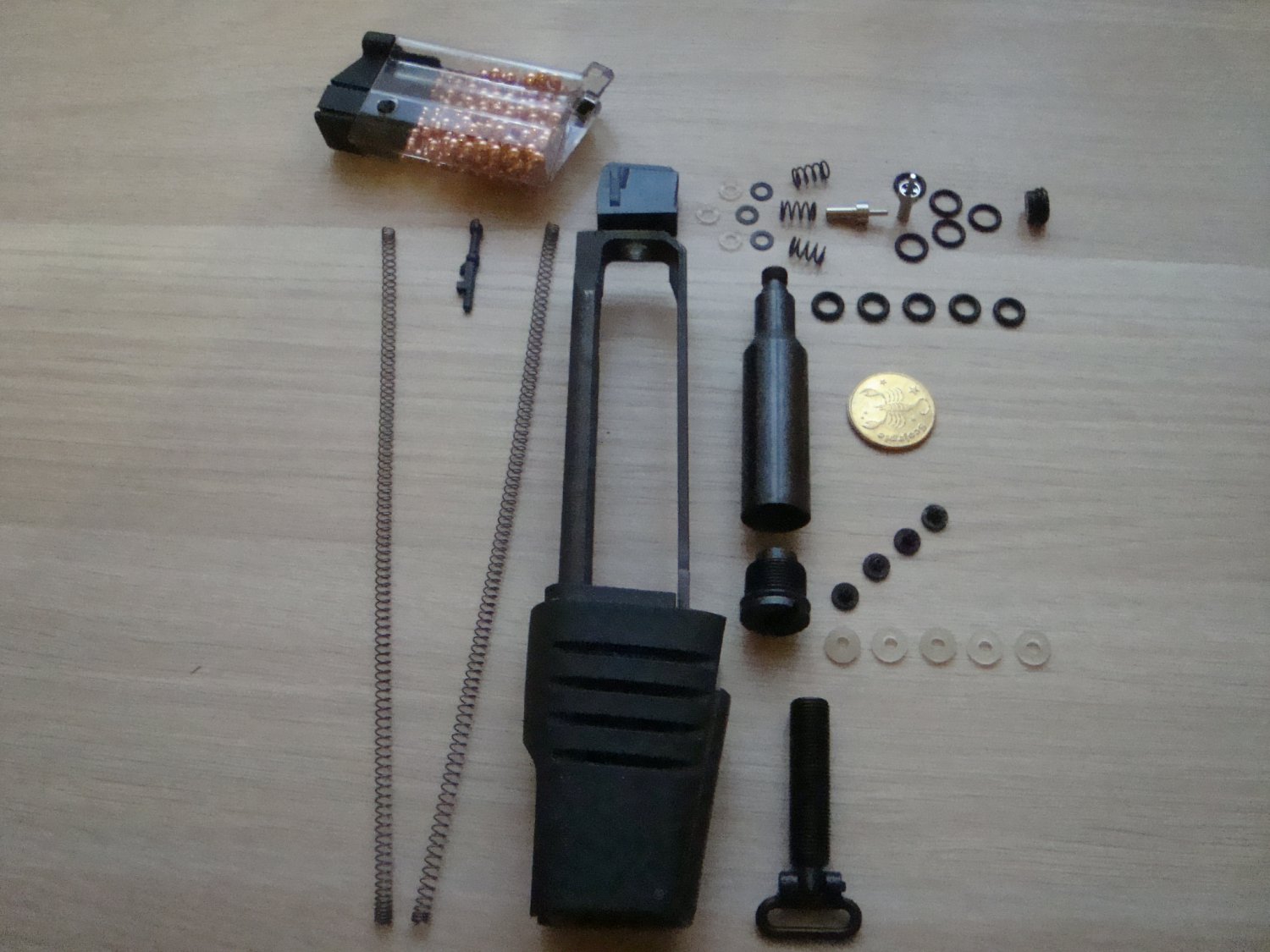

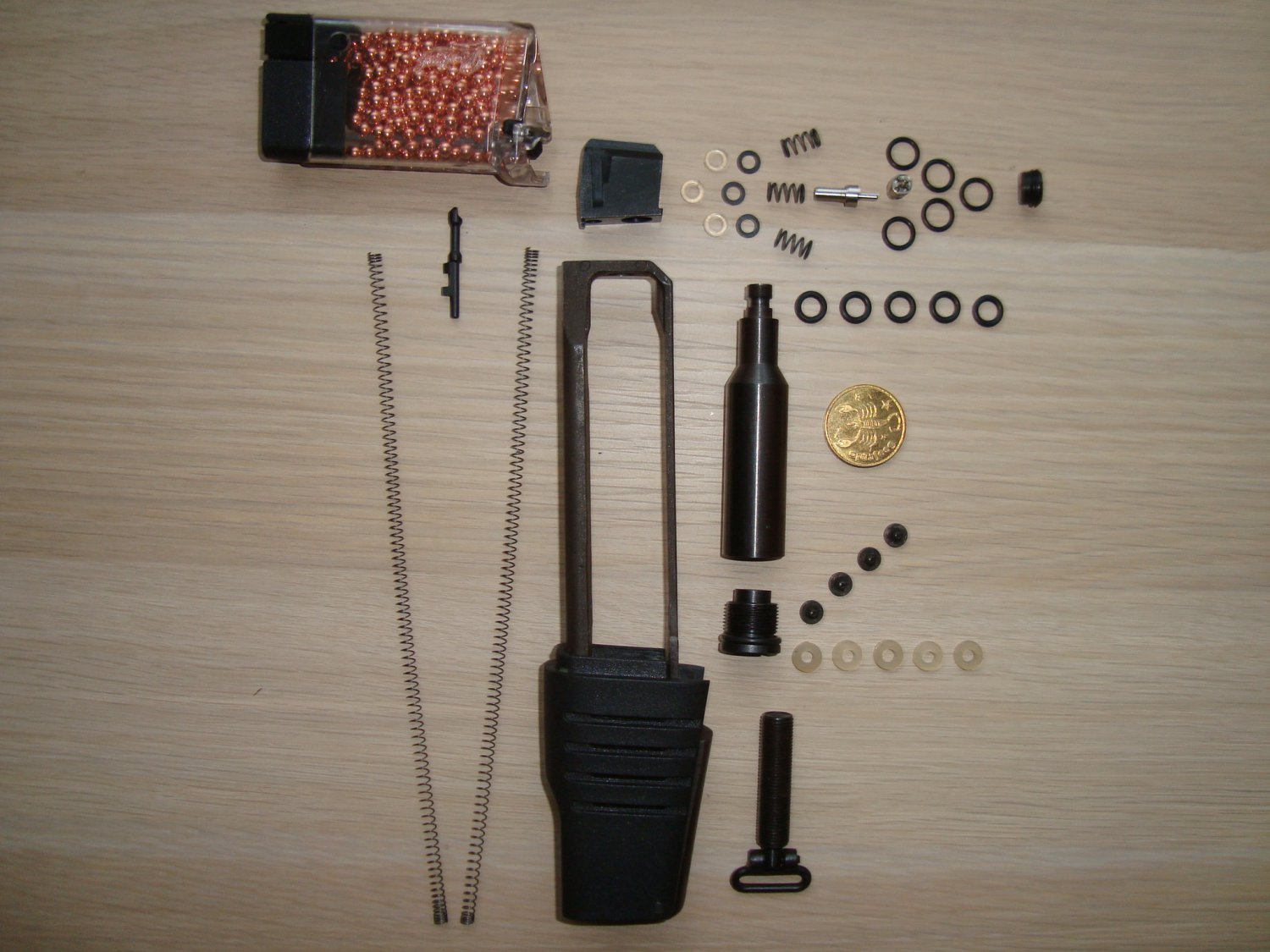

1. In a transformable form in a disassembled state, as shown in the photo,
2. In a transformable form in the assembled state, and all remaining additional elements will also be sent together in the same package next to each other.
The newest repair set "Scorpio 6" consists of the following improved parts:
1. Two pieces valve with newest design.
- made of high-strength steel 50 followed by heat treatment - they have an increased resource,
- it has four holes of optimal diameter, due to which the throughput is significantly increased, which as a result significantly improves the performance,
- durable coating, similar in characteristics to chrome plating, provides better interaction of parts,
- the proposed new improved valve is installed instead of the standard one without any modifications - fully interchangeable.
2. Bulb modernization of elongated shape with a large volume and a special lower composite insert, which is attached to it with a reliable threaded connection. These parts are made of reinforced heat-treated steel, due to this they are very durable and in combination provide significantly better performance and stability.
3. Saddle improved.
The proposed improved valve saddle has an increased resource, that is, it is much more durable, thanks to a special heat treatment, as well as the composition of the improved saddle includes high-quality sealing elements of more wear-resistant materials (solid polyurethane and durable rubber).
4. Body valve upgraded.
The proposed valve body has an increased pre-valve volume, which is achieved by transferring the needle and mesh closer to the neck of the cylinder, due to which this volume increases, which has a positive effect on the main indicators. Made of strong steel 50, followed by heat treatment, has a durable coating.
5. Two pieces spring and new model pusher.
The proposed spring and a pusher of an improved design, which is made of reinforced steel with hardening using more advanced technology, thanks to which it has become even stronger and more durable, as well as its improved shape contributes to more comfortable use, as the load decreases and increases convenience fixation.
6. Screw clamping spray improved and more convenient, suitable for all generations and any modifications! The main advantages of using the proposed improved screw:
- has a built-in steel swivel,
- made of durable steel,
- provides a comfortable grip for screwing in with your fingers,
- allows to significantly reduce gas losses, due to the fact that the time between the puncture is significantly reduced to complete sealing,
- improves ease of use, thanks to the opportunity that appeared quickly and without additional devices to change the cartridge.
7. Functional plastic box.
The proposed plastic box is designed for increased convenience of storage and transfer of consumables. This box is made of sturdy plastic and has an opening top cover, and a special locking device on the bottom, thanks to which the box is tightly fixed on the case.
8. High-quality sealing elements from expensive wear-resistant materials (new professional improved complete set for connoisseurs)!
The proposed sealing elements is great for all generations MP-661K "Drozd" and MP-654K. All sealing rings in this improved set are made of durable, expensive materials without any defects, unlike cheaper copies, which are now mainly on the market, as well as in comparison with other low-quality counterparts on the new improved rings there is no unnecessary side burr (additional protruding pieces of material). The diameter of all the rings in the new improved full set is the most optimal, which has a positive effect on the interaction of parts and improves their performance, thanks to this, an ideal tightness is achieved and, as a consequence, increased performance, which is maintained for a very long time. The most important resource of the new improved kit is many times higher than that of its cheaper and lower-quality copies (analogs with unsecured dimensions and pieces of unnecessary material sticking out along the edges), therefore the new improved set of sealing elements turns out to be economically much more profitable and justified. as its service life is many times longer, the advantage is that now it’s not necessary to disassemble and reassemble the valve assembly often, having to replace the seals in it each time, which in turn is It is tangibly reflected in the service life of all other steel components, since they erase the coating and quickly wear out the existing fine thread, due to this unit is better disassembled extremely rarely, which will make it possible to make a new improved set. The new improved full set includes the following components:
- valve sealing rings(three pieces) made of durable polyurethane are transparent with a pleasant golden tint and they have the smaller diameter of all presented, fit snugly to the valve walls). high quality sealing elements from expensive wear-resistant materials (new professional improved complete set for connoisseurs,
- sealing flat rings(five pieces) of the bulb for installation in its lower part, also made of durable polyurethane,
- the black bulb sealing rings(five pieces) for installation in its upper part. These rings with thick walls were made on a new technological mold for their manufacture, a special material was selected that has a high resistance to strong cooling and at the same time it is not deformed, at the same time maintaining an optimal elasticity important for these sealing rings for a long time without losing its strength characteristics,
- the sealing rings(five pieces) of the valve seat are black. They have the largest diameter with the thinnest walls. Made of a more durable material and have an optimal level of elasticity).
8. Reinforced valve springs with durable coating (three pieces),
9. Washers valve made of solid steel (three pieces),
10. Hardened steel bulb needles (four pieces),
11. The largest and oblong of durable steel lower part of the body,
The package delivery includes newest full repair set "Scorpio 6".
