mp-654k saddle, bulb, valve, key screwdriver, screw clamp, springs, sealing o-rings, needles lamp, washers, modernization spare parts for tuning Baikal perfect suitable for generations 1-4 and 5 with starting numbers T 150..., T 160... for a wide frame, newest advanced repair set "Scorpio Warrior".
The proposed advanced repair set "Scorpio Warrior" is universal and therefore ideal for all modifications and versions, both early and new MP-654K Baikal for generations 1-4 and 5 with starting numbers T 150..., T 160... for wide frame. This set is universal and can be supplied in two versions at the request of the buyer:

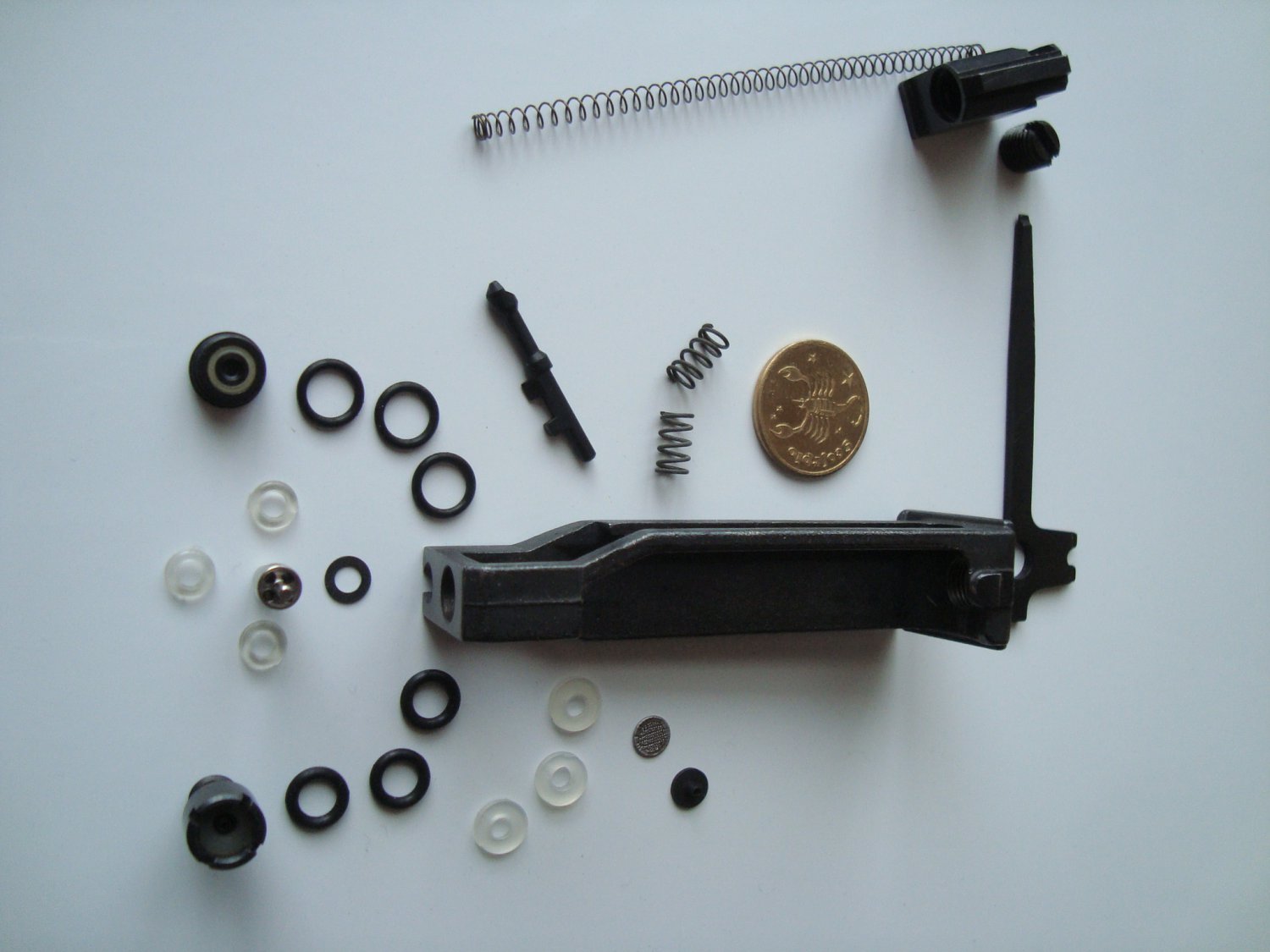

1. In a transformable form in a disassembled state, as shown in the photo,
2. In a transformable form in the assembled state, and all remaining additional elements will also be sent together in the same package next to each other.
The new improved repair set "Scorpio Warrior" consists of the following modernized spare parts:
1. Valve newest construction with four extended holes.
- newest valve have four holes, which significantly increase the throughput energy and as a result give powerful indicators,
- have it has enlarged bore holes with the maximum allowable diameter,
- thanks to the improved shape of each of the four holes, it was possible to achieve greater structural rigidity of the central part, which accounts for the main pressure from the hammer,
- high precision in the manufacture allowed to provide a non-deformable central and lateral edges,
- made of high-strength steel 45, followed by heat treatment 50 HRC, which raises the resource,
- durable coating, similar in characteristics to chrome plating, provides better interaction of parts,
- easy to install instead of the standard ones and do not require any special tools, they are completely interchangeable, which is very convenient and practical.
2. Bulb modern is suitable for all generations and any modifications.
- made of stronger steel with the subsequent special heat treatment that significantly increased him resource,
- due to the improved design has high bandwidth,
- included is a special durable stainless steel filter with built-in double micro grid of different parameters for even greater structural gain,
- has a sealing ring made of high-quality, more wear-resistant solid polyurethane,
- ideal combines with the new improved valve and him seat.
3. Saddle reinforced.
The proposed improved valve saddle has an increased resource, that is, it is much more durable, thanks to a special heat treatment, as well as the composition of the improved saddle includes high-quality sealing elements of more wear-resistant materials (solid polyurethane and durable rubber).
4. Body valve upgraded.
The proposed valve body has an increased pre-valve volume, which is achieved by transferring the needle and mesh closer to the neck of the cylinder, due to which this volume increases, which has a positive effect on the main indicators. Made of strong steel 50, followed by heat treatment, has a durable coating.
5. Spring and new durable follower.
The proposed spring and a pusher of an improved design, which is made of reinforced steel with hardening using more advanced technology, thanks to which it has become even stronger and more durable, as well as its improved shape contributes to more comfortable use, as the load decreases and increases convenience fixation.
6. Screw clamp, has compact form, less noticeable from the outside more convenient for mount with screwdriver-key, suitable for all generations and any modifications.
7. High quality sealing elements from expensive wear-resistant materials (new professional complete set for connoisseurs).
The proposed sealing elements is great for all generations MP-654K and MP-661K "Drozd". All sealing rings in this improved set are made of durable, expensive materials without any defects, unlike cheaper copies, which are now mainly on the market, as well as in comparison with other low-quality counterparts on the new improved rings there is no unnecessary side burr (additional protruding pieces of material). The diameter of all the rings in the new improved full set is the most optimal, which has a positive effect on the interaction of parts and improves their performance, thanks to this, an ideal tightness is achieved and, as a consequence, increased performance, which is maintained for a very long time. The most important resource of the new improved kit is many times higher than that of its cheaper and lower-quality copies (analogs with unsecured dimensions and pieces of unnecessary material sticking out along the edges), therefore the new improved set of sealing elements turns out to be economically much more profitable and justified. as its service life is many times longer, the advantage is that now it’s not necessary to disassemble and reassemble the valve assembly often, having to replace the seals in it each time, which in turn is It is tangibly reflected in the service life of all other steel components, since they erase the coating and quickly wear out the existing fine thread, due to this unit is better disassembled extremely rarely, which will make it possible to make a new improved set. The new improved full set includes the following components:
- valve sealing rings(three pieces) made of durable polyurethane are transparent with a pleasant golden tint and they have the smaller diameter of all presented, fit snugly to the valve walls). high quality sealing elements from expensive wear-resistant materials (new professional improved complete set for connoisseurs,
- sealing flat rings(three pieces) of the bulb for installation in its lower part, also made of durable polyurethane,
- the black bulb sealing rings(three pieces) for installation in its upper part. These rings with thick walls were made on a new technological mold for their manufacture, a special material was selected that has a high resistance to strong cooling and at the same time it is not deformed, at the same time maintaining an optimal elasticity important for these sealing rings for a long time without losing its strength characteristics,
- the sealing rings(three pieces) of the valve seat are black. They have the largest diameter with the thinnest walls. Made of a more durable material and have an optimal level of elasticity).
8. Reinforced valve springs with durable coating (two pieces),
9. Washer valve made of solid steel,
10. Bulb filter made of sturdy stainless woven micro grid,
11. Hardened steel bulb needle,
12. The largest and oblong of durable steel lower part of the body,
13. Convenient, compact and reliable key for complete, more comfortable and quick disassembly to replace all replaceable components.
The package delivery includes new extended, advanced repair set "Scorpio Warrior".
