MP-654K magazine saddle, bulb, valve, sealing o-rings, springs, screw clamp, needles upgrade parts for tuning Baikal, ideally suitable generations 1-4 and 5 with numbers starting T 15, T 16 for a wide frame, improved repair set of newest modernized parts, extended update set "Scorpio Emperor".
The proposed advanced, upgraded newest set "Scorpio Emperor" is universal and therefore ideal for all modifications and versions, both early and new MP-654K Baikal generations 1-4 and 5 with starting numbers T 15 and T 16 for a wide frame.

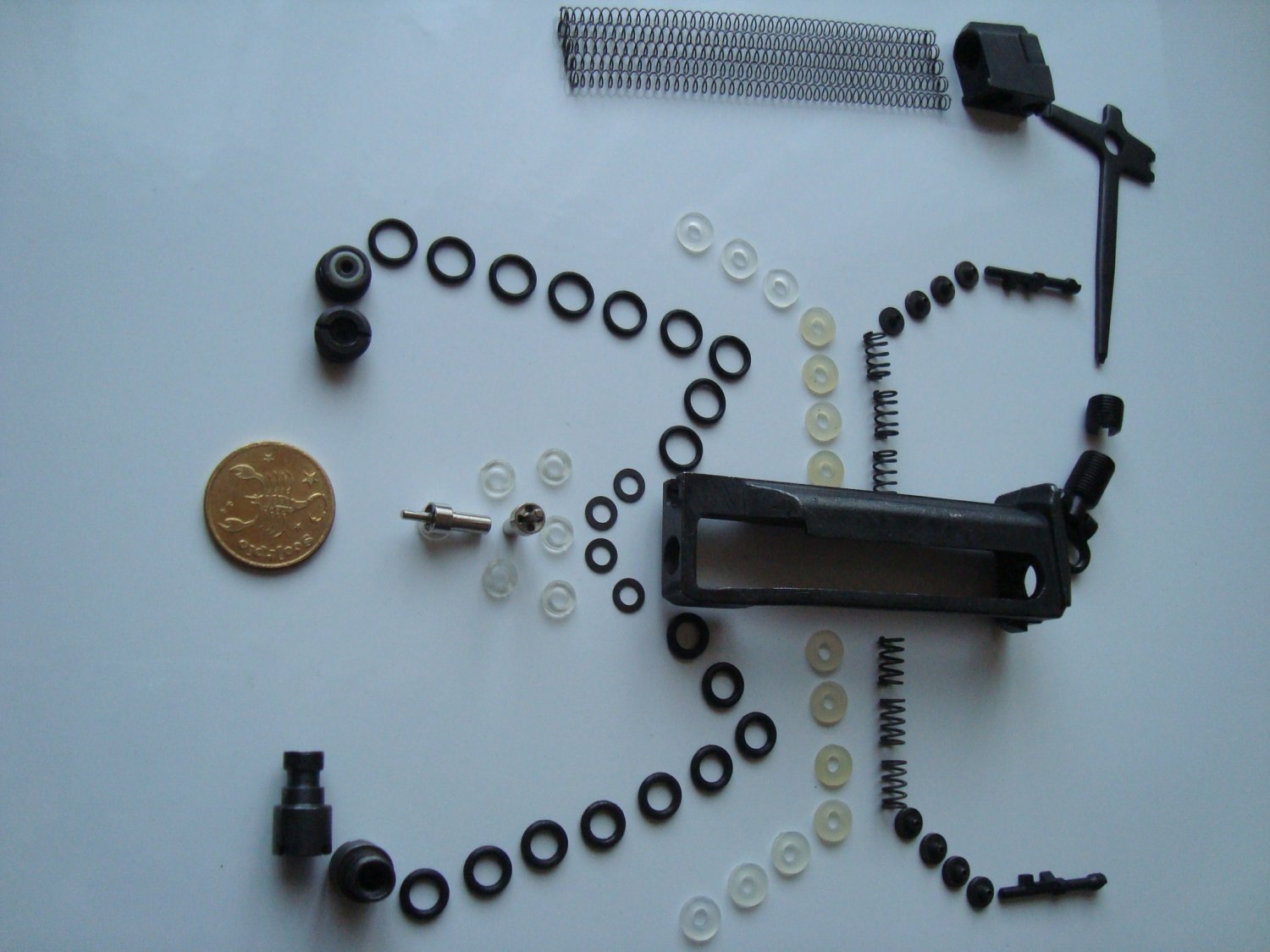

This modernization improved set "Scorpio Emperor" consists of the following update spare parts:
1. Valve with newest construction(two pieces).
- valve have four holes, which significantly increase the throughput,
- have it has enlarged bore holes with the maximum allowable diameter,
- thanks to the improved shape of each of the four holes, it was possible to achieve greater structural rigidity of the central part, which accounts for the main pressure from the hammer,
- high precision in the manufacture allowed to provide a non-deformable central and lateral edges,
- made of high-strength steel 45, followed by heat treatment 50 HRC, which raises the resource,
- durable coating, similar in characteristics to chrome plating, provides better interaction of parts,
- easy to install instead of the standard ones and do not require any special tools, they are completely interchangeable, which is very convenient and practical.
2. Air-bulb(lamp) newest design ideally suitable for all generations advanced expanded construction with the modernized strengthened components(two pieces).
The proposed newest lamp is great for all generations and any modifications of the MP-654K and MP-656K. This improved lamp includes:
- body optimally elongated and maximum possible Increased diameter extensions in the right places, with the provides increased bandwidth and a much larger portion of incoming each time, which has a positive effect on the increase in energy produced, resulting in significantly improved performance. This new case is made of stronger reinforced steel with subsequent heat treatment by innovation vacuum quenching, which made it much more reliable and resource has become more.
- needle puncture with a strong thickened base and an expanded lower part of an improved shape for more efficient, deep and precise interaction with replaceable cylinders, has excellent throughput with maximum opening. This modernized needle is made of strong steel with subsequent heat treatment by quenching, which makes it much stronger and more durable,
- sealing ring with low deformability for perfect sealing of the lower part, which interacts with the upgraded needle and replaceable cylinders, provides an excellent significantly longer retention and less need to be replaced due to its improved properties. This sealing ring is made by means of a new industrial mold of special high-quality oil-resistant durable rubber with the necessary optimum elasticity, which as a result gives less wear and more resource,
The main advantages of the proposed newest improved air lamp:
- due to the additional volume that has appeared, the main indicators will significantly increase,
- now it is much less necessary to change the sealing elements,
- throughput will increase,
- life of all components of both the lamp itself and the valve assembly as a whole will become more,
- stability will improve, because this lamp performs the role of a good uniform dispenser according to its characteristics close to the expansion chamber,
- sealing will be much higher and more durable
- puncture level will be deeper, more complete and sharp with precise fixation, which minimizes losses with each discovery,
- tuned lamp has a beautiful aesthetic appearance and more perfect construction with perfect options for best related characteristics.
3. Saddle robust newest design(two pieces).
The proposed improved saddles with a new robust construction with hardened components are universal and are ideally suited for all models MP-654K, MP-661K, MP-656K, MP-562K.
Newest powerful saddles, possess the finished technically more competent and thought over design. They have a specially enlarged rear part for reliable fixing of the screwdriver in the slots, which is very convenient and now it will be much more comfortable and faster to unscrew the saddle without disruption or scratches.
The new saddles have thicker locking rear edges of optimally larger diameter, increasing strength characteristics and providing perfect fit with excellent sealing, which improves the overall performance, and also due to the tighter locking, the resource is significantly increased.
These saddles are made of sturdy steel and have the best reliable coating chemical oxidation by oiling, plus they were subjected to the most advanced innovative vacuum heat treatment (quenching), which made them much stronger and more durable, increasing the service life many times.
On these modernized seats, significantly more reliable and durable sealing elements are installed:
- the white inner ring is made of high-quality solid wear-resistant polyurethane, made according to a new technology using modern industrial molds of the new sample. The newly reinforced white inner ring does not have the property of turning yellow with time with the concomitant structural weakening, as it is made of a primal, costly material.
- the black outer ring is made of low-deformable rubber with an optimal level of elasticity and thicker walls to provide excellent sealing, which contributes to a noticeable increase in service life. The new reinforced outer black ring has an excellent surface roughness, which provides an ideal level of contacting elements for better interaction of parts of the node, and it also has a pleasant appearance with glitter.
4. Body valve upgraded.
The proposed valve body has an increased pre-valve volume, which is achieved by transferring the needle and mesh closer to the neck of the cylinder, due to which this volume increases, which has a positive effect on the main indicators. Made of strong steel 50, followed by heat treatment, has a durable coating.
5. Five springs and new two durable followers.
The proposed spring and a pusher of an improved design, which is made of reinforced steel with hardening using more advanced technology, thanks to which it has become even stronger and more durable, as well as its improved shape contributes to more comfortable use, as the load decreases and increases convenience fixation.
6. Screw clamping and more convenient, suitable for all generations and any modifications! The main advantages of using the proposed improved screw:
- has a built-in steel swivel,
- made of durable steel,
- provides a comfortable grip for screwing in with your fingers,
- allows to significantly reduce gas losses, due to the fact that the time between the puncture is significantly reduced to complete sealing,
- improves ease of use, thanks to the opportunity that appeared quickly and without additional devices to change the cartridge.
7. Screw clamp, has compact form, less noticeable from the outside more convenient for mount with screwdriver-key, suitable for all generations and any modifications.
8. High-quality sealing elements from expensive wear-resistant materials.
- valve sealing rings(six pieces) made of durable polyurethane are transparent with a pleasant golden tint and they have the smaller diameter of all presented, fit snugly to the valve walls). high quality sealing elements from expensive wear-resistant materials (new professional improved complete set for connoisseurs,
- lower sealing rings(14 pieces) for newest lamp with low deformability for perfect sealing of the lower part, which interacts with the upgraded needle and replaceable cylinders, provides an excellent significantly longer retention and less need to be replaced due to its improved properties. This sealing ring is made by means of a new industrial mold of special high-quality oil-resistant durable rubber with the necessary optimum elasticity, which as a result gives less wear and more resource,
- upper sealing rings(nine pieces) for newest lamp providing better sealing due to its special properties combined with increased life. This ring is made by means of a new industrial mold of high-quality rubber with a specially selected level of elasticity necessary for a more long-term and high-quality performance of its function.
- sealing rings(nine pieces) of the valve seat are black. They have the largest diameter with the thinnest walls. Made of a more durable material and have an optimal level of elasticity).
9. Reinforced valve springs with durable coating (six pieces),
10. Washers valve made of solid steel (four pieces),
11. The largest and oblong of durable steel lower part of the body,
12. Hardened needles puncture with a strong thickened base and an expanded lower part of an improved shape for more efficient, deep and precise interaction with replaceable cylinders, has excellent throughput with maximum opening. This modernized needle is made of strong steel with subsequent heat treatment by quenching, which makes it much stronger and more durable(eight pieces),
13. Screwdriver convenient, compact and durable reliable steel key for complete, more comfortable and quick disassembly to replace all spare components.
The package delivery includes advanced newest modernized repair set "Scorpio Emperor".
