HP motherboard IPIBL-LB motherboard, made by ASUS, model IPIBL-LB .
Micro ATX motherboard, Asus IPIBL-LB-Benicia-GL8E.
Bundled with Intel quad core 8300 processor, 2.5 GHz, and 8 GB of 6400 ram memory.
Support disk and back panel I.O plane are included with three sata cables.
Video of boot series, with settings was made and will post.
Big cooling fan and heatsink are included. You must connect the Fans to the fan headers!
The motherboard requires a 24 pin ATX power connection, and the 4 pin P4 power connector.
PCI-Express graphics port, two comm 1X ports, and a PCI 32 bit socket for additional cards.
FAST Priority shipping. If you need a courier other than USPS , please contact us! We ship out fast,
so please contact us prior to purchase so we can arrange the courier service.
You will receive:

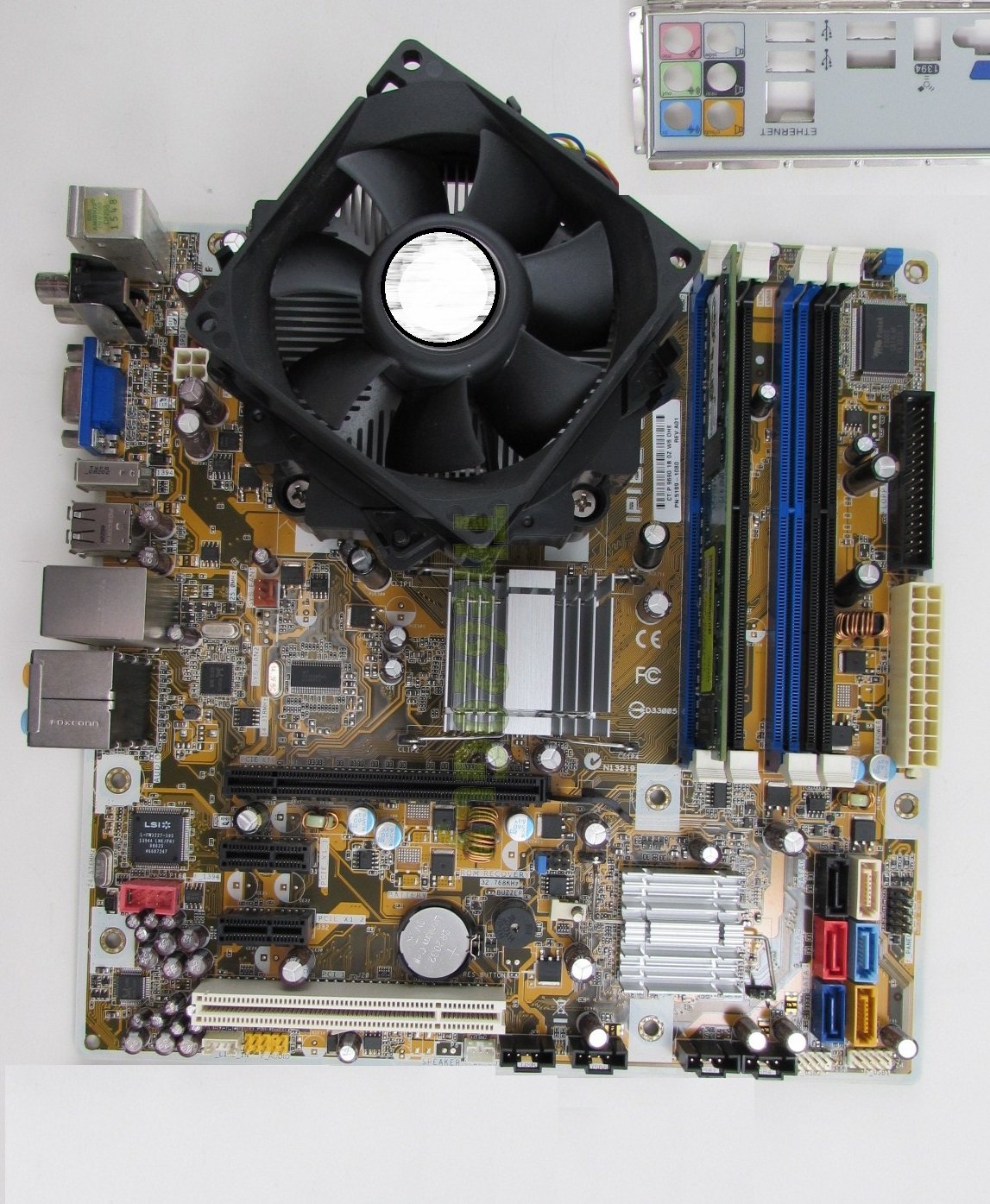

HP 492774-001 Benicia Asus IPIBL-LB REV1.01 Motherboard + Core 2 Quad Q8300 2.5GHz CPU,
with the large heat sink and fan, and the I/O Plate. Support disk, and three sata cables.
The heat sink has had silver thermal paste freshly applied.
Anti static packaged, and double cartons to ensure a safe delivery.
CPU Chipset Intel G33
Onboard GPU yes
Form Factor Micro-ATX
Max RAM 8 GB DDR2
RAM Slots 4 x DDR2
Memory Channels 2
