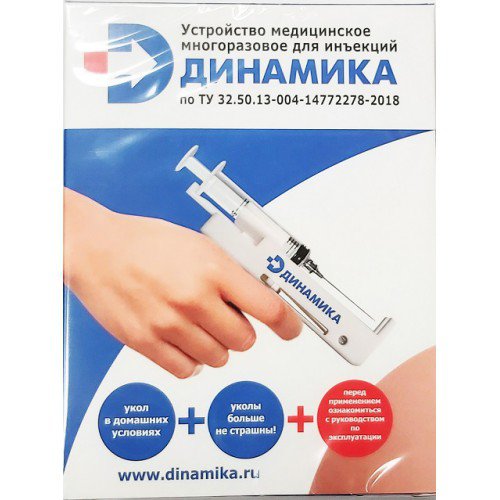

Medical reusable device for injection "Dynamics"
The product is a body with an ergonomic handle, a spring mechanism, cocked by the removal of sliders and actuated by a trigger (trigger).
On the case there is a bed for syringes, with a volume of 5 ml.
To accommodate 3 ml syringes, the product is equipped with an adapter.
The principle of operation of the Product: The product allows you to perform injections intramuscularly with disposable syringes, with a volume of 5 ml and 3 ml, by releasing the tension forces of the spring mechanism for piercing the skin.
Further, the introduction of medicines is carried out manually.
The product is designed to create a mechanical force when piercing and inserting the needle of a disposable syringe during intramuscular injections.
Scope of application: a medical product of general use.
The product is delivered non-sterile.
A reusable product.
Conditions of use: for use in medical organizations and at home.
The materials used for the manufacture of the Product are non-toxic, have the required strength, corrosion resistance, resistance to operating conditions, have a positive conclusion on toxicological and sanitary-chemical tests.
The weight of the Product is not more than 0.3 kg.
The lodgment moves smoothly in the body, without jamming.
The product has a well-distinguishable protrusion on the bed, which determines the location of the syringe in the bed.
There are no cracks, chips, blisters, delaminations, burrs, dirt on the surface of the Product.
The product is serviceable during operation at nominal temperature values from 10 to 35 °C.
The product meets the requirements of the technical specifications and a set of design documentation throughout its entire service life, subject to the operating, transportation and storage conditions established by the technical specifications.
The product is intended for repeated use. The materials of the Product parts are resistant to disinfection during the entire service life set by the manufacturer.
The Product must be disposed of after disinfection, as Class A waste or together with household waste.
The diameter of the 5 ml syringe cylinder should be in the range from 13 mm to 14 mm;
3 ml - from 10 mm to 11 mm.
The length of the 5 ml syringe cylinder should be in the range from 60 mm to 65 mm;
3 ml - from 60 mm to 65 mm.
The geometric dimensions of the needles are determined individually by the doctor, depending on the patient's characteristics
Joint storage of devices with chemicals is not allowed.
