Specifications:

* Video Input: 4Channels
* TV OUT: 1Channel
* Frames Rate: 100pfs(PAL)/120fps(NTSC)
* Compression: H.264/MPEG4
* File Size: 80~200M/H/C
* Multiple Cards: 1~4 per PC
* Display Resolution: 640 x 480, 352 x 288, 320 x 240
* Record Resolution: 640 x 480, 352 x 288, 320 x 240
* PTZ: Control From Local or Remote, Support Protocol of Popular High Speed Dome or Speed Dome
* Remote: TCP/UDP Protocol, IE Viewing Available. Connect to 256K-2M Internet Bandwidth Can Reach the Effect of LAN Without Occupying CPU Resource
* Recording Mode: Manual, Continuous, Schedule, Event (Senor, Motion Detection) and Multi-zone Motion Detection Setting Simultaneity Available
* Playback: Multi-channels Playback Simultaneously; Digital Zoom, Capture and Print or Backup the Picture of The Video Files
* Other: With Watch-dog and Lightning-Proof Design
* OS: LINUX
* The first software compression DVR card based on Linux OS
* Strong Linux system to prevent virus, attack from hacker
* Easy, one-station installation from OS to software
* Normal user can become installation engineer
* One series has 1ch, 4ch, 8ch, flexible combination in one PC
* Lightning, static proof design for hardware
* No need to buy the expensive windows OS

Notice:

* Card must be in this configuration can be used
* Motherboard: Intel chipest 848,865,915,945(as ASUS,Gigabyte)
* MSI mainboard
* DVR Intel 945GC

Six advantages for Linux OS:

* The safest, the most stable
* Operation speed and efficiency is higher than windows OS
* Fully exert the performance of system because of the multiprogramming environment
* Powerful network function, connect between surveillance system and internet is more easy
* Easy operation, quick usage
* Low cost for maintaining, decrease the cost of man-power

Details:

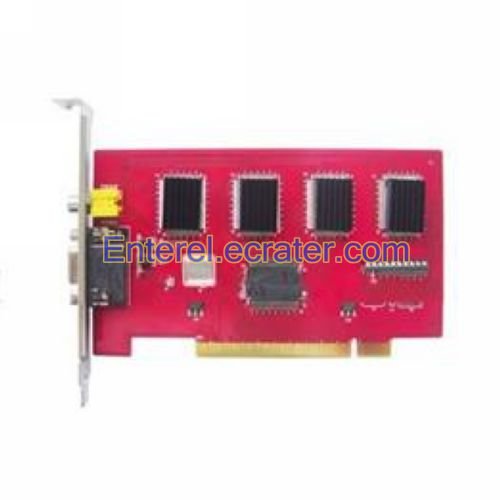

4 Channels Video Input and 1 Channel TV Out DVR Card HW-LX404E

* 4 Channels Video Input and 1 Channel TV Out DVR Card turn your PC into a DVR. This card plugs into your standard PC and allows you to view and record 4 video feeds. This is a very low-cost options for providing a four-channel digital video recorder. The DVR card brings all the benefits of digital monitoring to your PC

How to Select a Video Capture Card:

* Determine the type of PC expansion slot that you will plug your video capture card into your computer. The three major PC adapter interfaces for video capture cards are PCI, PCI-Express (or PCI-e), and USB. This is important because you will need to see which one will fit your PC. If you are not sure use the reference link at the end of this article to motherboards.org about PC Expansion Slots.
* Determine the type of video format that the video capture card will be receiving. The two standard video formats are Standard Definition (SD) and High Definition (HD). Video capture cards vary in the types of definition as well as the format of HD content. Also some video capture cards do hardware encoding which formats the video content into PC readable files. Check if the video capture card is software or hardware encoding as this can affect your PC system resources such as CPU and Memory requirements.
* Choose the number of tuners for the video capture card. Most of the early video capture cards could only capture one video source at a time. Now manufacturers sell dual tuners or multi-tuner video capture cards that allow more than one video source to capture per PC expansion slot.
* Other media type considerations. Some video capture cards can take FM audio signals which allow to capture streaming audio. Also another consideration are remote controls that allow to change channels with your video capture card. Make an assessment of all of your requirements before purchasing.

Package Included:
