Specifications:

* Video Signal System: NTSC / PAL
* Compression Format: H.264
* Input: 1-4channels
* Output: VGA
* Audio: 4 channels
* O.S.: Windows 2000 / XP / 2003
* Decode Chip: TI DM 642
* Frame Rate: 30fps per ch (NTSC)/25fps per ch (PAL)
* Display Resolution: 352 × 240(NTSC)/352 × 288(PAL)
* Screen Division: 1, 4, 9 and User-Defined Picture Division and Length-to-Width Ratio
* Frame Rate: 30fps per ch (NTSC)/25fps per ch (PAL)
* Record Resolution: 352 × 240(NTSC)/352 × 288(PAL)
* Code Rate: 64K-2Mbps Option
* Recording Mode: Manual, Time, Motion Detective, Sensor, Pre-Recording
* Playback: Multi-Channel: 1-24 ch Playback In Time, Mode: 1,4,8,16 Fast Playback, Single Frame Playback
* Transmission Mode: LAN / PSTN / ISDN / ADSL
* Transmission Protocol: TCP/IP
* Connecting: Client Software/ IE Browser
* Client/IE: Remote Preview, Recording, Playback, Control, Support Dynamic,
* Equipment: Support Alarm Box, RS232/485
* Alarm Event: Motion Detection, Video Signal Loss, Sensor Input
* Linkage: Video Recording, Sound Alerts, Alarm Box Output, Phone Alert, Net Inform
* Alarm Box: Support Multi-Protocol, 1-24 ch Signal Input and Output
* P/T/Z: Support Multi-Protocol, RS232/485,Higspeed Dome Control Software
* Back Up: USB, Network, CD-RW, DVD-RW Backing Up
* Security: Multi-Lever Password, User Right Option, System Keyboard Lock
* Max Channel: 16 ch per PC
* 30 fps per Channel (NTSC), 25 fps per Channel (PAL)
* High Resolution 352x240 (NTSC), 352x288 (PAL)
* Compression format H.264 hardware compression
* Real time preview, recording and playback
* Support up to 64 Channels installed on one PC
* Software Kit

Details:

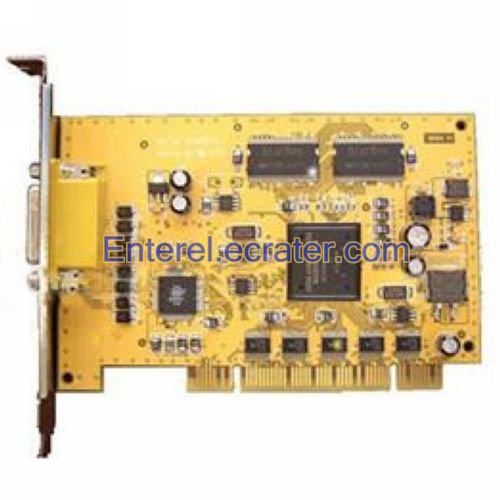

H.264 Format 4 Channel Hardware Compression Card TE-104HB

* Compression format H.264 hardware compression

How to Select a Video Capture Card:

* Determine the type of PC expansion slot that you will plug your video capture card into your computer. The three major PC adapter interfaces for video capture cards are PCI, PCI-Express (or PCI-e), and USB. This is important because you will need to see which one will fit your PC. If you are not sure use the reference link at the end of this article to motherboards.org about PC Expansion Slots
* Determine the type of video format that the video capture card will be receiving. The two standard video formats are Standard Definition (SD) and High Definition (HD). Video capture cards vary in the types of definition as well as the format of HD content. Also some video capture cards do hardware encoding which formats the video content into PC readable files. Check if the video capture card is software or hardware encoding as this can affect your PC system resources such as CPU and Memory requirements
* Choose the number of tuners for the video capture card. Most of the early video capture cards could only capture one video source at a time. Now manufacturers sell dual tuners or multi-tuner video capture cards that allow more than one video source to capture per PC expansion slot
* Other media type considerations. Some video capture cards can take FM audio signals which allow to capture streaming audio. Also another consideration are remote controls that allow to change channels with your video capture card. Make an assessment of all of your requirements before purchasing

Package Included:

* 1 x H.264 Format, 4CH Real-time Hardware Compression Card
