Retail: $980.35

Our SALE Price: $746.93

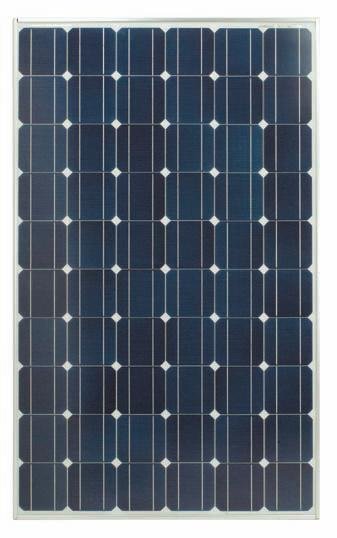

MULTI-PURPOSE 240 WATT MODULE FROM THE WORLD'S TRUSTED SOURCE FOR SOLAR

Using breakthrough technology, made possible
by nearly 50 years of proprietary research
and development, Sharp’s NU-U240F2 solar
module incorporates an advanced cell surface
texturing process to increase light absorption
and improve efficiency. Common applications
include commercial and residential grid-tied
roof systems as well as ground mounted arrays.
Designed to withstand many harsh operating
conditions, this module offers high power
output per square foot of solar array.

ENGINEERING EXCELLENCE
High module efficiency for an outstanding balance
of size and weight to power and performance

DURABLE
Tempered glass, EVA lamination and
weatherproof backskin provide long-life and
enhanced cell performance.

RELIABLE
25-year limited warranty on power output.

HIGH PERFORMANCE
This module uses an advanced surface
texturing process to increase light absorption
and improve efficiency.

INNOVATIVE
156 mm pseudo-square monocrystalline solar cells provide high power output. Ideal for large commercial rooftops where space is a premium.


ELECTRICAL CHARACTERISTICS

Maximum Power (Pmax) - 240w
Tolerance of Pmax +10%/-5%
Open Circuit Voltage (Voc) - 37.4V
Maximum Power Voltage (Vpm) - 30.1V
Short Circuit Current (Isc) - 8.65 A
Maximum Power Current (lpm) - 30.1A
Module Efficiency - 14.7%
Temperature Coefficient (Pmax) -0.485%/°C
Temperature Coefficient (Voc) -0.36%/°C
Temperature Coefficient (lsc) +0.053%/°C

SPECIFICATIONS

Cell - Monocrystalline Silicon
Cell Configuration - 60 in series
Dimensions 39.1" x 64.6" x 1.8" (994 x 1640 x 46mm)
Weight - 41.9 lbs
Cable Length - 43.3"/1100mm
Output Interconnect Cable** - 12 AWG with MC4 Locking Connector
Max Load - 50 psf (2400 Pascals)
UL Listed - UL 1703
Fire Rating - Class C

**A safety lock clip may be required in readily accessible locations per NEC 2008 690.33
