B3D 5112 - Dome Array

People always know different company make different products, and many customers ask us whether we can make a dome array with low profile, like Omrom B3D-5112. Of course it’s no problem for us to make, this is one of our standard single key dome arrays, but what we used is different in some parameters, but has the same function.

Here are some parameters:

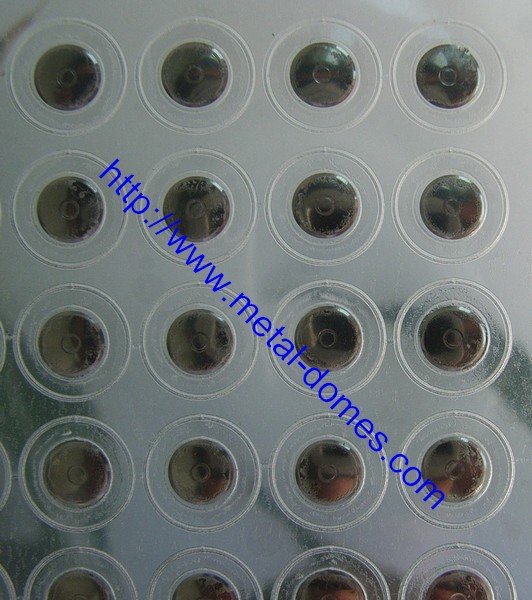

Name: Single key Metal Dome Array (similar like Omron B3D 5112)
Parameters:
Dome diameter: 5mm;
Dome force: 160gf
Dome surface finishing: Nickel
Travel (Stroke): 0.2+/-0.05mm
Height (thickness of whole product): 0.3mm+/-0.05mm
Dome material: stainless steel
Array material: PET with glue
Structure: Top Mylar (clear) + Bottom Spacer (clear)
Life cycles: 500,000-1,000,000 times
Color: Transparent (clear)
Switch capability: 12 VDC, 10 mA
RoHS compliant: Yes

Package: 144 pcs/sheet
(Pease order in multiples of 144 pcs dome array)

Lead time: 7-10 days

Here are price list.

Q’TY(pcs) Price Extended

1 $0.30 $0.30

25 $0.25 $6.25

50 $0.22 $11.00

100 $0.20 $20.00

144 $0.18 $25.92

288 $0.16 $46.08

576 $0.15 $86.40

1,000 $0.12 $120.00

1,728 $0.10 $172.80

3,456 $0.09 $311.04

For more quantity, please contact us.
http://www.metal-domes.com
Email: [email protected]
