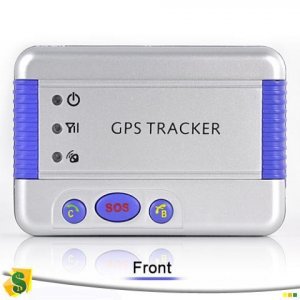

Learn more about Mini Personal GPS tracker

Specifications
Dimension: 67*47*17(mm)
Unit Net Weight: 37g (without battery)
Unit Gross Weight: 59g (total)
Memory: 64 M bit NOR flash and 32 M bit SRAM
Key: Power button
SOS button
Directly phone calling button(B)(hang up)
Directly phone calling button(C)(answer)
LED
GSM work status
Battery status
GPS status
IO interface
5-pin Mini-USB(inside the shell) connector with USB virtual port(configuration the device with the PC software tool)
Battery: 1000 mA, rechargeable Li-Ion battery Max 140 hrs working time
Adaptor
Input: AC 100~ 240 V, 0.3 A Max
Output: DC5 V, 0.5 A
GSM Module Specifications
CPU
High performance 32-bit RISC
Software OS
Multitask real time OS
GSM feature
Dual band GSM900/1800 MHz
Quad band GSM850/900/1800/1900MHz
GPRS Protocol
GPRS Class B
GPRS Class 10
GPS Specifications
GPS chip
High sensitivity GPS chipset
GPS sensitivity: -159Db
GPS frequency: L1, 1575.42 MHz
GPS Position Accuracy: 5m-25m
GSM Position Accuracy: 100m-500m
Velocity Accuracy: 0.1 m/s
Time Accuracy: Synchronized to GPS time
Altitude Limit: 18,000 meters (60,000 feet) max.
Velocity Limit: 515 meters/second (1000 knots) max.
Cold start: 36 sec.
Warm start:33 sec.
Hot start:2 sec.
Channels:20 parallel channels
Assist GPS: Support (default)
Environment temperature
Operating Temp :0C to 50C
Storage Temp:-20C to 60C
Humidity: 5% to 95% Non-condensing
Waterproof: NO
Certification: CE
Package Contents for Model GTP-200
Mini Global GPS Tracker
Travel Charger
Battery
Software CD
English Manual
FUNCTIONS
1. Tracking.
The product support single location and continuous tracking by short message, call or interval time.
2. Displaying location on map.
You can input the longitude and latitude from the SMS sent by tracker on the google earth or google maps to display the location.
3. SOS alarm.
This function is useful for anti-theft and emergency.
4. Fence alarm.
When the tracker is out of the fence, it will send alarm message to the preset number or platform of computer server.
5. Low battery alarm
6. Power off alarm.
When external connected power supply of the tracker be cut off for some reasons, for example, short circuits or broken circuits, the tracker will send alarm message to the preset number or upload location information to computer server by GPRS.
7.Two-way communication.
The tracker can be used as a talking tool like a mobile phone with high sensitivity.
8.Monitoring alarm.
