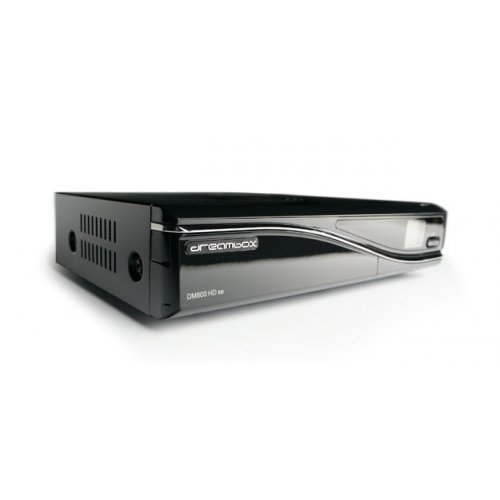

DREAMBOX 800 HD SE , DM 800 HD SE FERRARI SIM

Main features are a 400 MHz processor the Dreambox DM 800 HD SE supports the Linux TV API.

Have a look to HighDefinition TV on your Dreambox.

•10/100MBit compatible Ethernet Interface
•HDMI connector
•Plug & play Tuner
•Colored OLED display
•Plug & play slot for an internal 2,5" SATA hard disk
•Additional eSATA connector

Technical Features

• 400 MHz MIPS Processor
• Enigma 2, Linux Operating System
• colored OLED - Display
• MPEG-2 / H.264 Hardware decoding
• Tuner: DVB-S, optional: DVB-C, DVB-T
• Tuner Module, Plug&Play
• 2 x Smartcard-Reader (Dreamcrypt CA)
• Mini USB for Service and software update
• 10/100Mbit Ethernet Interface
• 1 x Scart (RGB, FBAS or S-Video)
• HDMI
• 2 x USB 2.0
• analog modem
• S/PDIF Interface for digital bit stream out (AC-3)
• 64 MByte Flash, 256 MByte RAM
• 2 x SATA
- for internal HDD 2,5“
- one external eSATA
• unlimited channel lists for TV/Radio
• channel-change time < 1 second
• automatic service scan
• directly bouquet-lists
• EPG (electronic program guide)
• multiple LNB-Switching control (supports DiSEqC)
• OSD in many languages and skin-support
• Videotext Decoder
• extern 12V power supply
DreamBox DM 800 HD SE Technical Data
DBS-Tuner with DVB-S2:
Frequency Range 950 .... 2150 MHz
Demodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK)
Symbol rate DVB-S: 2 ... 45 Mbaud/s, SCPC/ MCPC
DVB-S2: 10 – 31 Mbaud/s (8PSK) , 10 –30 Mbaud/s (QPSK)


Video decoder:
Video Compression MPEG-2 and MPEG-1 compatible, H.246
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Device


Audio decoder:
Audio compression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz


Output analog:
Output Level L/R 0,5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < -65 dB


Output digital:
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical, Toslink


Output Video:
Output Level FBAS 1 Vss +/- 0.3 dB an 75 Ohm


Video parameter:
Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard


TV-Scart:
Output: FBAS, RGB, S-Video


Mini USB service connector:
Function: Update of Firmware


Ethernet:
10/100 MBit compatible interface
Function: Update of Firmware


Analoge modem:
analoge modem for Internet connection


SATA Interface:
for internal 2,5" HDD and one eSATA


USB
2 x USB 2.0 Host


LNB power and polarisation per tuner:
LNB Current 500mA max.; short-circuit-protected
LNB Voltage vertical < 14V no load, > 11,5V at 400mA
LNB Voltage horizontal < 20V no load, > 17,3V at 400mA


Count of active satellite position:
DiSEqC 1.0/1.1/1.2 and USALS (Rotor Control)


Power consumption:
< 15W at 12V


External PSU
Input:
110-240V AC / 50-60Hz / 0,6A
Output:
12V = / 3,0A


Physical specification:
Ambient Temperature +15°C...+35°C
Humidity < 80%
Size (W x D x H): 225 mm x 145 mm x 52 mm
Weight: 940 g without HDD
