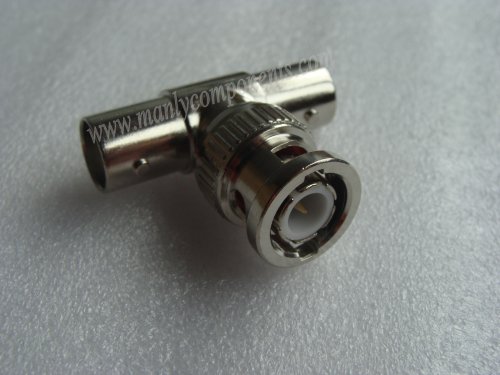

Wholesale 1000pcs T-adaptor 1 Plug with 2 Jack BNC Coaxial Male with Female Connector
More than 10 available
Details
Shipping: USPS calculated - check
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Pin: Copper & gold plated
Body: Zinc alloy & Ni plated
Insulators: PTFE Teflon
BNC series are the most widely used bayonet lock coaxial connectors with 50 ohm and 75 ohm impedances.
The 50 ohm series can be used up to 4GHz and 75 ohm series can be used up to 1GHz.
Clamp and crimp type cables are available and every 75 ohm and 50 ohm cables are compatible.
Characterisitics:
Impedance 50ohm, 750hm
Frequency range DC 4 GHz, DC 1GHz
Contact Current DC 3.5A Max.
Voltage rating 500V rms
Contact resistance Center contact:20 m ohm
Contact resistance Other contact:1.0 m ohm
Insulation resistance 5000M ohm min.
Insertion loss 0.3dB max. at 3GHz
V.S.W.R ≤1.15
(returen loss better than 23.0dB)
Life 500 matings
Contact captivation ≥27N
Processing Time: Ships out within 7 days
Free Shipping by: DHL or FedEx
