Model: BH-SOLA06
Weight:300g

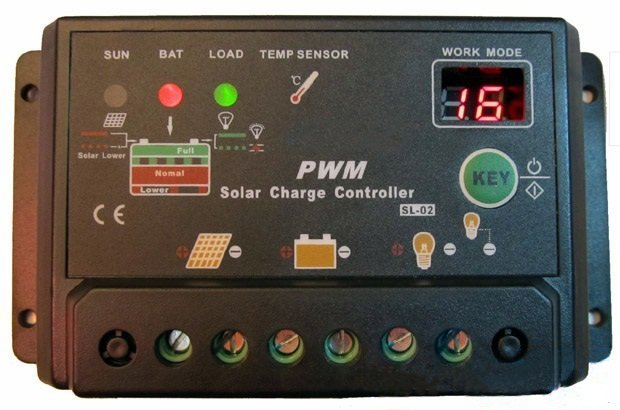

Our solar panel charge controller has the function of self protection from overload, outside and inside short circuit, reverse connection, thunder and lightning, PV panel reverse current, over charging and discharging etc. During the short circuit and overload protection, no any component will be damaged and need change, including fuse. The LED will indicate the working state of the system in charging, overcharging power full, power low, over-discharging, over load, out short circuit, load on/off and etc. Our products meet the industrial production standard with wide temperature running area -35 to +55. In order to make sure the control accurate and reliable we use flash memory to save all work control point instead of adjustable resistance to project the control work point from going off as the adjustable resistance #118alue is easily changed by temperature and vibration. And our products are easy to operate, robust in design.
TYPE EPRC-EC
Rated solar input 30A
Rated Load Current 30A
System voltage DC12V;DC12V/24V AUTO SWITCH
Over load. Short circuit protection 1.25 rated load current 60sec, 1.5rated loads current 5sec, over load
