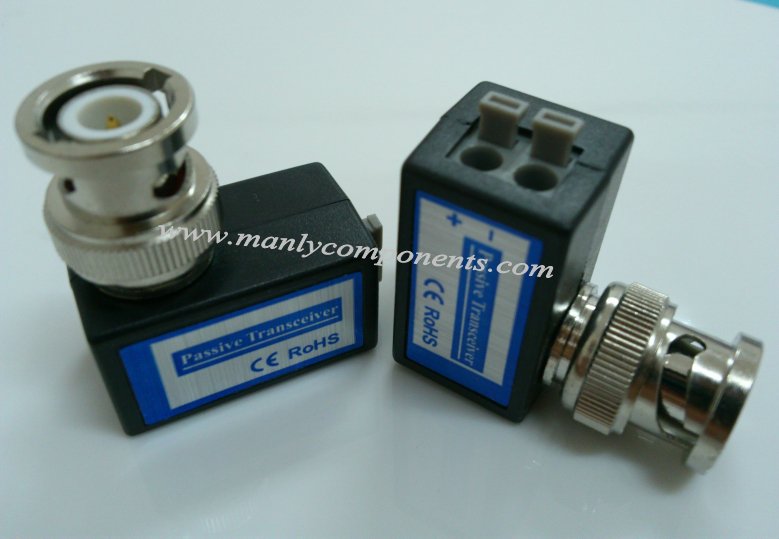

Wholesale 100Pair Video Transceiver,Video Balun Toolless Screwless,interference Rejection

Video Balun Features:

Frequency response DC to 5MHz
Material ABS Plastic
Impedance Coax BNC: 75ohm; UTP:100ohm
CMRR/Attenuation 60dB/0.3dB type
Transmission distance About 500M(W/B Video); About 400M(Color Video)
Power No required
UTP Port Terminal Block
Connectors Male BNC and “press-Fit” Terminal blocks
Impedance BNC-75ohms, Terminal-100ohms
Category Type UTP CAT5, 24-16AWG
Working Temperature -10ºC~ +70ºC
Storage Temperature -30ºC ~ +70ºC
Humidity 0 ~ 90%
Weight(Net) 40g/pair

Single Channel Passive Video Transceiver;
PAL/NTSC Real-time Video Transmission;
Exceptional Interference Rejection and Built-inProtection Setting;
Convenient Wiring Installation, Higher Cable Utilization Rate and Lower Composite Wiring Cost;
Compact Size.

How to match:

Passive match Passive can transmit 400m
Passive match Active can be 600~800m
Active match Active can be 1200m
The transmitter should be used single Channel

Processing Time: Ships out within 7 days
Free Shipping by: DHL or FedEx
