£12.69 On Hold

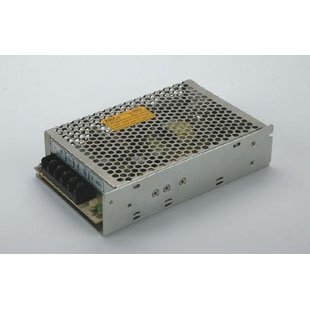

LED AC/DC Switching Power Supply S-25-24,24VDC Output,Amps1,24Watts

More than 10 available

Details

Shipping: United Kingdom: free (more destinations)

Condition: Brand new

*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

Description

LED AC/DC Switching Power Supply S-25-24,24VDC Output,Amps1,24Watts

DC Output Voltage: 24VDC;
Output Voltage Tolerace: +/-1%;
Output Current: Amps 1;
Output Current Range: 0~1A;
Output Power: 24Watts;
Ripple And Noise: 120mvp-p;
Voltage Range: +/-10%;
Input Voltage Range: 85~132VAC/170~264VAC,
255~373VDC;
Frequency: 47~63Hz;
Efficiency: 74%;
AC Input Current: 0.65A/115V,0.35A/230V;
AC Inrush Current: Cold-Start Current: 15A/115V,30A/230V;
Leakage Current: less Than 3.5mA/240VAC; Working Temperature And Humidity: -10 Degree C~+85 Degree C, (refer to output rating curve )20%~90% RH;
Storage temperature and humidity: -20 Degree C~+85 Degree C, 10%~95% RH;
Over Load: 110%～160% , Protection type: Fold back current limiting, recovers automatically after fault condition is removed;
Setup,Rise,Hold Time : 800ms,50ms,10ms/
115VAC300ms,50ms,80ms/230VAC at full load ;
Standards: CE

Packing: 1X LED AC/DC Switching Power Supply S-25-24,24VDC Output,Amps1,24Watts
