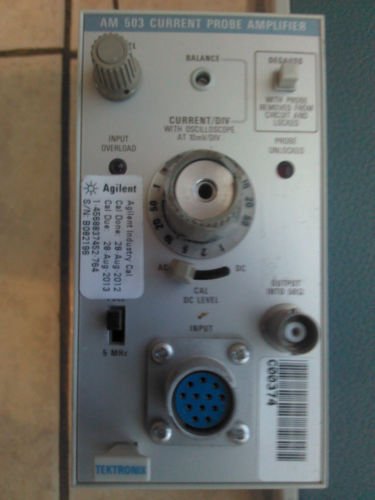

TEKTRONIX AM503 Current Probe Amplifier Plug-In
Only 1 available
Details
Shipping: United Kingdom: free (more destinations)
Condition: Used
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
TEKTRONIX AM503 Current Probe Amplifier Description: The AM503 current probe amplifier allows display of current on any oscilloscope having 10 mV/div sensitivity, 50 ohm or 1 megohm input, and at least 100 MHz bandwidth. It is compatible with A6302, A6303, P6302, P6303 current probes. It requires a TM500 or TM5000 series mainframe for operation. Features: Allows for current display on any oscilloscopeMaximum input current: 20A for 6302; 100A for 6303Bandwidth: >50 MHz 6302; >15 MHz 6303Rise time: <7 ns 6302; <23 ns 6303Deflection factor: 1 mA/div to 5 A/div for 6302; 20 mA/div to 50 A/div for 6303Weight: 4 lb; Size: single width module
