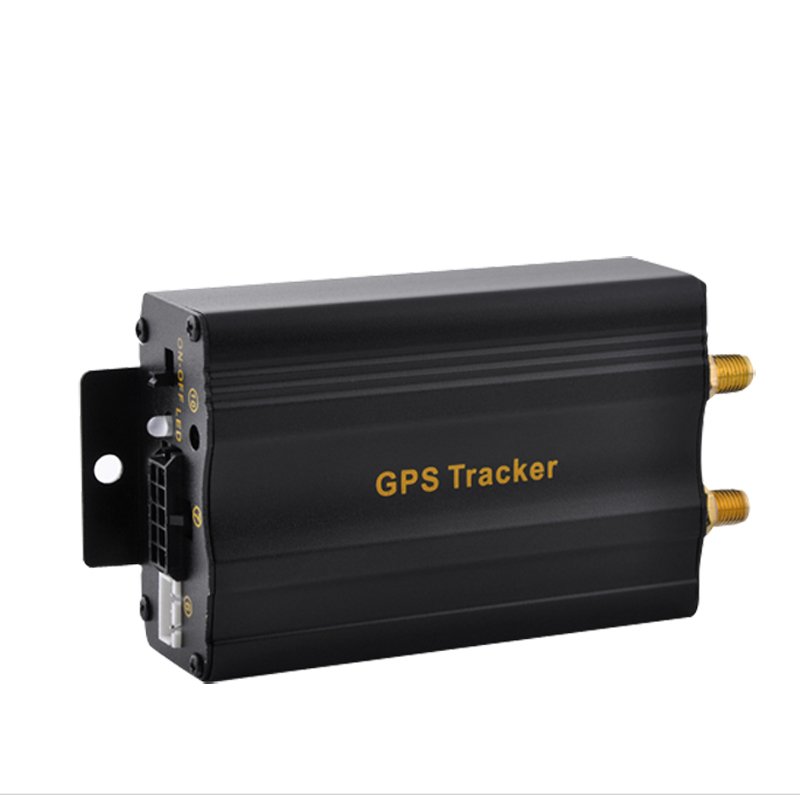

GPS Tracker - Data Logger, for Fleet Management, Vehicle Protection, GSM, Quad-band Connectivity


Product code: MDPL-G204-2GEN


GPS car tracker with a Data Logger, GSM and Quad-band Connectivity is the perfect addition to boost the protection of your vehicle.

Introducing this GPS Car Tracker for global vehicle tracking. With its convenient SMS ability, full-range of alarm functions (including gas to engine cut off), and lots more, this GPS Car Tracker is the ultimate safety device for your car, van, truck, or even the entire vehicle fleet. Replies with a TXT message of current latitude, longitude, speed, and time, as well as an Internet map link to your cellphone to show you exactly where the GPS tracker/your vehicle is. Now with a Micro SD card slot, the GPS tracker turns into a data logger by storing location data directly onto it. With the included software, you can easily track your vehicle’s route afterwards. When the vehicle moves in/out the preset scope, it will send an SMS alarm to the authorized phone numbers to alert the owner. The tracker can warn you with SMS message when the vehicle starts to move from a stationary status, or when the vehicle is moving faster than a preset speed.

You can send an SMS message to the tracker to cut off the gas and battery power, so the engine will remain in an immobilized state until your remove the alarm status. With a GPRS enabled SIM card, you can monitor real-time movement of your vehicle with the supplied software on your computer. It runs on the latest GPS SiRF III chip-set, a sophisticated GPS microchip embedded into the heart of the tracker which continually reads its own location from low orbiting global satellites and then utilizes the GSM/GPRS infrastructure operated by your cellular network provider to transmit its current location to you. All you need to do is insert a working SIM card, it even has Quad-band Connectivity so it works anywhere in the world.

This GPS Car Tracker is the ideal accessory for protecting any vehicle, it will you keep connected and let you know via your phone all for a great wholesale price. Order now and have it shipped out in less than 24 hours. Brought to you by the leaders of electronic devices and car trackers, Mesoamericadigital.

At Glance...
Complete system integration to your vehicle
Quad-band GSM frequency
Extensive functions through SMS
GPRS and Internet applications



Manufacturer Specifications

General
Network: GSM / GPRS
2G: 850/900/1800/1900
GSM/GPRS Module: Simcom Sim340
OS Compatibility: Windows7 and Windows Vista
Working Temperature: -20 to 55 Degrees Celsius
Humidity: 5 to 95 Percent Non-condensing
Power Source: Car Battery or Built-in Backup Battery
Battery Size: 1000mAH
Battery standby: 80 Hours

GPS
Receiver Module: SIRF III Chip
GPS Sensitivity: -159 dBM
GPS Accuracy: 5 Meters
Altitude Limit: 18,000 meters (60,000 feet) max
Velocity Limit: 515 meters/second (1000 knots) max
Acceleration Limit: Less than 4G
Cold Status: 45s
Warm Status: 35s
Hot Status: 1s

Memory
Micro SD card supports up to 4GB

Alarms, Alerts, Security Functions
Real-time tracking
Equipment Self-check
Remote Power Off

Ports
Monitor Connection Port
SIM Card Slot - 1x GSM
Micro SD card slot
Mini-USB Port

Dimensions
Main product dimensions: 105x54x24mm (L x W x D)


Product Notes
Please ensure that the SIM card is compatible (Only 2G, 2.5G, 2.75G SIM cards work)
Comes with detailed instructions on how to work with GPRS enabled SIM and setup internet monitoring (fixed IP only), so constant tracking information can be displayed on a detailed map
Each tracker’s IMEI number is unique and can only be used to setup the software on one computer once, which means you can only use the software on that computer exclusively after successfully setting it up. This is due to the security requirements of the software and the product.

Package Contents
GPS Car Tracker
GPS Antenna
GSM Antenna
Microphone
Relay
Wiring
Software CD
User Manual
