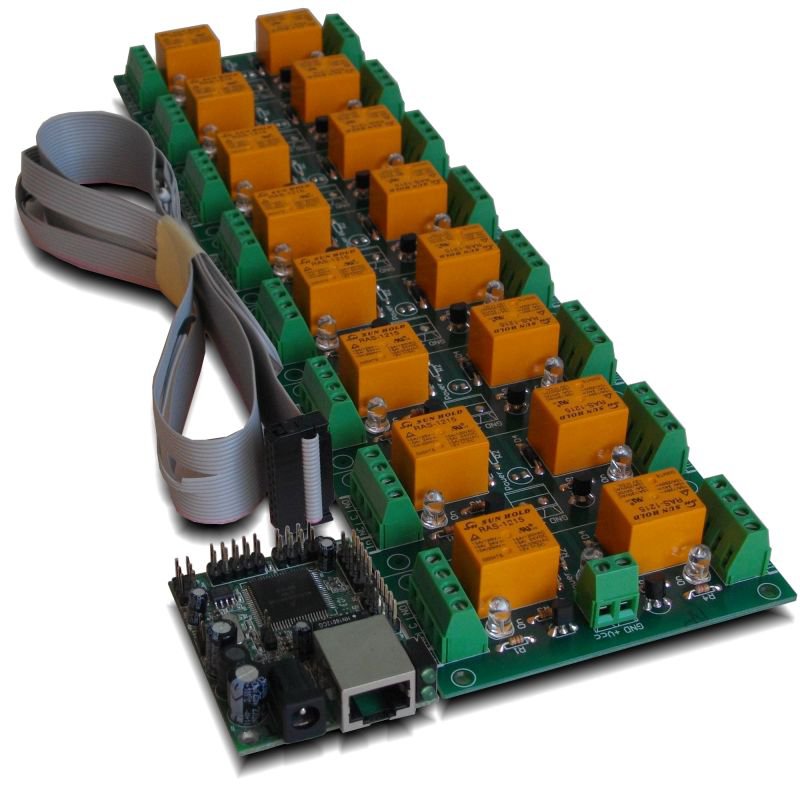

IP relay board with 16 SPDT relays (up to 15A each). Additionaly 8 analog inputs are avilable for various sensors. You can connect the board localy or via Internet and control it via computer software, web browser, command line, android mobile device. Easy to integrate in your code with our software examples. Now with FREE Android and iOS App!

General description:
This is kit of IP controler and card with 16 SPDT relays. It is for home automation, hobby and commercial projects. It allows you controlling electrical devices via LAN/WAN (Internet). Just connect the device into your local network and control it from another computer or android smartphone over the LAN or Internet. This IP relay board can be controlled from: Configuration utility - DAEnetIP2 Manager, web browser, command line, android smartphone application or Denkovi Relay Manager Software. We can provide also software examples for developers.

Feauters:
-10 Mb Ethernet interface with Link/Activity Led
-Power supply 12VDC (No protection against overvoltage and inverse polarity)
-Maximal current consumption: 600 mA / 12VDC
-16 SPDT Relays - 10A / 250VAC, 15A / 120VAC, 10A / 28VDC - single relay channel schematic - http://denkovi.com/Documents/SingleRelay12V.JPG
-8 analog inputs with 10 bit resolution (0-3.3VDC)
-16 (2x8) bit configurable digital I/O port (0-3.3VDC) - in this kit they are reserved for the relay board
-Dimensions: Relay PCB - 85mm / 300mm / 20mm; DAEnetIP2 - 43mm / 55mm / 15mm
-Standard protocols: ARP, IP, ICMP (ping), DHCP
-Supports snmp v1 (snmpset, snmpget, snmptrap), HTTP (integrated web server with autorization) , TFTP (for firmware upgrade)
-Ports for SNMP (161) and HTTP (80) can be changed
-Two MAC addresses protection
-It can be configured with SNMP requests or web browser
-Integrated WEB server for all functions/parameters access. I/O lines labels can be changed via browser
-HTTP API commands for getting/setting the I/O states (with basic access authentication)
-Reset of the relays on incoming/outgoing ping timeout (watchdog function)
-Function "load outputs(relays) states from EEPROM on boot"
-Each I/O line can be named by user via web browser
-It can send traps according analog ADC level
-Analog Inputs may be referred to control the relay according their level
-Possibility of connection analog sensors to the analog inputs as LM34DZ, LM35DZ, LM335, MCP9700A
-Relay PCB parameters: FR4 / 1.5mm / two layers / metallized holes / HAL / white stamp / solder mask / Extra PCB openings for better voltage isolation / Doubled PCB tracks for better voltage isolation
-Software by Denkovi - DRM Software (Windows/Linux) - http://denkovi.com/drm-software, DAEnetIP2 Configuration utility - denkovi.com/Software/DAEnetIP2-Manager/Current-Version/DAEnetIP2Manager.exe, DAE-iModules App for iOS - http://denkovi.com/dae-imodules, DAE-aModules App for Android - http://denkovi.com/DAE-aModules
-Third parity software (Majordomotic, MyDomoticaHd, netsnmp, Android software by iSwitch LLC) - http://denkovi.com/ethernet-16-relay-board-controlled-via-web-snmp-internet#third_parity_software;
-Software examples for PHP, JAVA, .NET and NI LabView - http://denkovi.com/ethernet-16-relay-board-controlled-via-web-snmp-internet#examples
-For detailed user manual - please contact us for download

Application examples:
-Security and fire alarm systems
-Manual or automatic device restart if event occur
-Management/monitoring for industrial
-Sensor information processing
-Remote Lock/unlock doors
-Home automation

---------------------------------
This item is assembled, tested and in working condition.
We have this item in stock.

According our policy, the handling time is up to 3 business days after clear payment is received.

VAT (Value Added Tax) For the Europe Community only:
For EU countries, we will charge you with VAT. The VAT is included in the shipping. That's why the shipping cost of these countries is higher. If you represent a company and have valid VAT number, please include it(and all the Billing company information) as a note when you purchase. We usually make partial refund of the VAT (in this case we don't charge you with VAT). In the package will be included VAT based Invoice with your VAT number.

Shipping methods:
Denkovi Team will select the best shipping option for your order - DHL Express or TNT Express
Expedited shipping (DHL/TNT) - Delivery time: 1-5 business days.

*The pictures of products are only demonstrative and may be different than the real look of products. It does not change their basic features.
