£12.57 Add to Cart

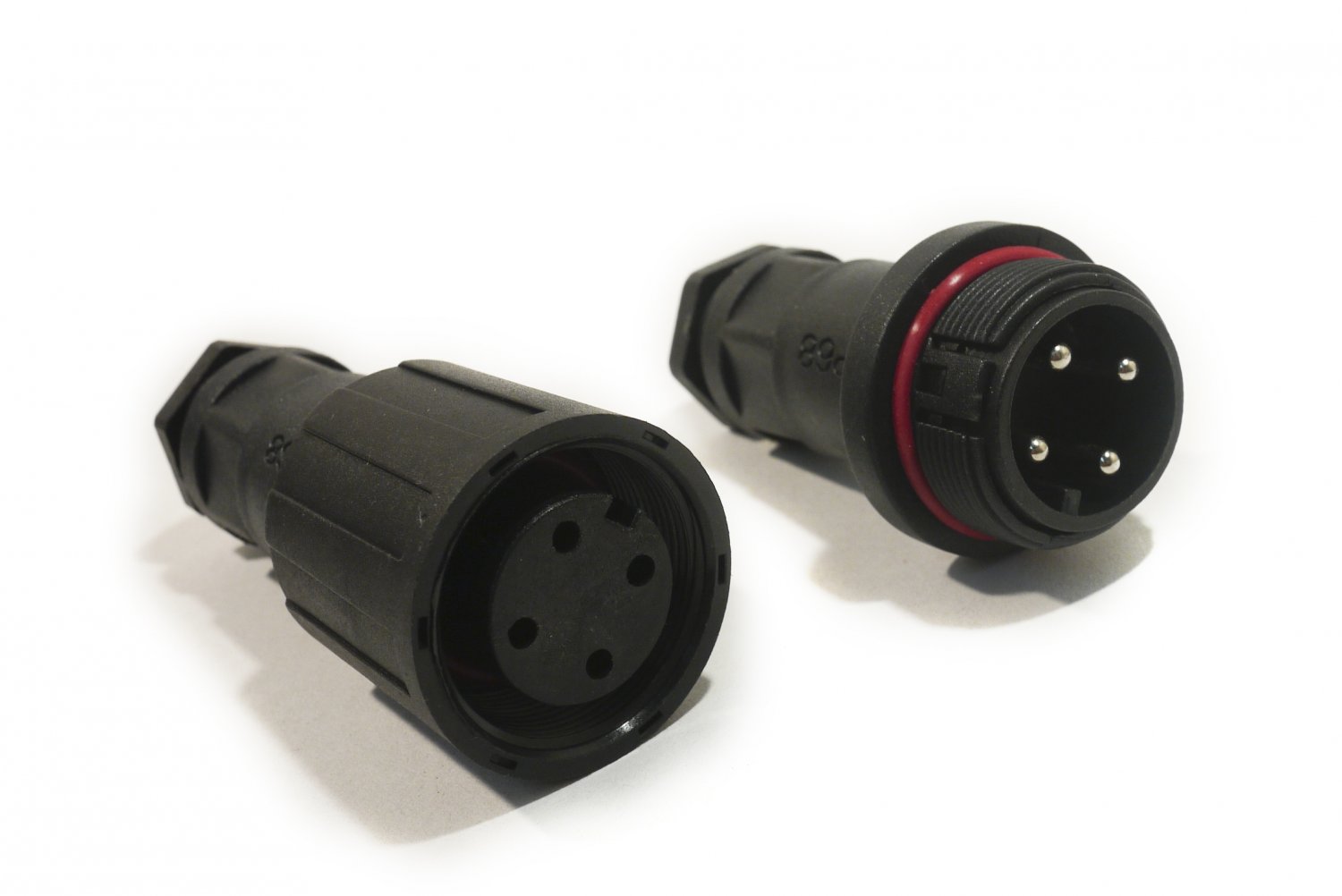

3 pcs 9000 4-Pin IP68 Waterproof Electrical Deck Plug Circular Cable Connector 15A

More than 10 available

Details

Shipping: United Kingdom: free (more destinations)

Condition: Brand new

*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

Description

1．Connector Gender: Female /Male
2．Design Structure: Assembled
3．Case Color: Black
4．Case Shape: Straight Line
5．Number of Cores: 4pin
6．Wiring Mode: Compression
7．Weight: 36g

Material Description
● Shell material：Flame-resistant /anti-UV nylon（PA66）UL94V-0
● Pin:Gold-plated brass / Jack:Gold-plated phosphor bronze
● Seal-O-Ring：NBR
● Times of plug / unplug：Above 3000 times
● ROHS Environmental protection material According to UL standard

Performance
● Dielectric resistance：500 MΩ at DC500V
● Pin diameter：2.35mm
● Cable OD Rating：OD≦8.5mm
● Current Rating：15A
● Voltage Rating：250V AC
● Cable Acceptance：5.0-8.0mm
● Standing voltage：3KV Under normal temperature
● Operating temperature：―40℃~+105℃
