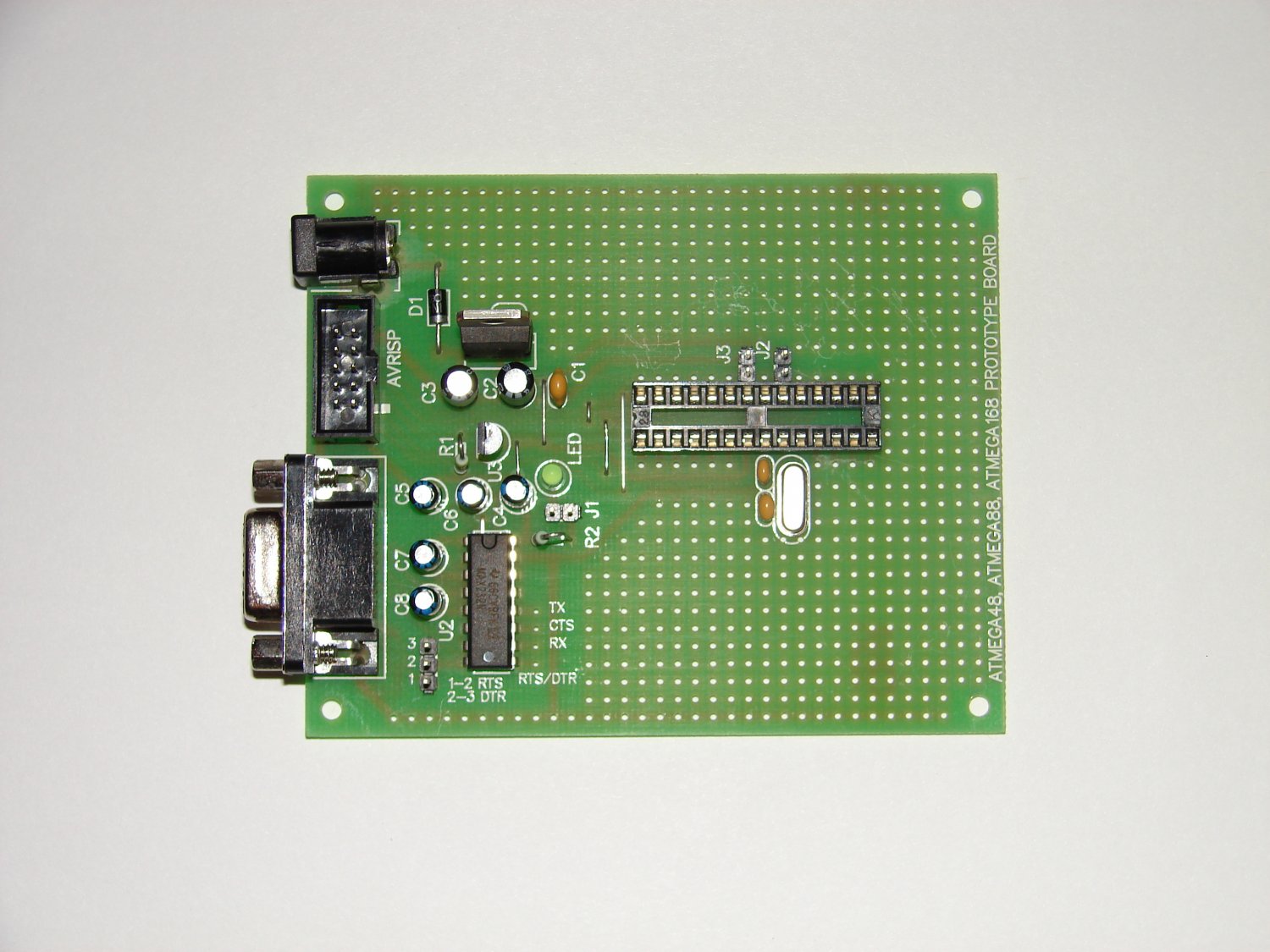

AVR-P28 AVR MICROCONTROLLER PROTOTYPE BOARD FOR 28 PIN DEVICES WITH STKxxx COMPATIBLE 10 PIN ICSP

IDEAL FOR BEGINERS

FEATURES:

* STK200 compatible ICSP 5x2 pin connector for in-circuit programming with AVR ISP or other
* RS232 Tx, Rx interface with MAX232 IC
* 8 MHz crystal on socket (user can replace with any value)
* reset (based on IC ZM33064, MC34064 or similar)
* status LED connected to PC5 via removable jumper
* DIL28 microcontroller socket
* Power plug-in jack
* +5V power supply voltage based on 7805
* extension pin headers for each uC pin
* four mounting holes 3.3 mm (0.13")
* GND bus
* Vcc bus
* FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
* dimensions 100x80 mm (3.9x3.15")

Supported devices: AVR in DIP28 (Atmega8, ATmega48, ATmega88, ATmega168...)

Name Component Q-ty
COM port connector DRB-9M 1
Power connector standard Jack connector 1
AVRISP BH-10 1
C1 0,1 mkF 1
C2 100mkF x 16V 1
C3 10mkF x 25V 1
C4, C5, C6, C7, C8 1mkF x 16V (Polarity of capasitors: "+" pin square pad, "-" pin round pad) 5
C10, C11 22pF 2
U1 28-pin DIP socket 1
U2 MAX232 1
U3 MC340 or other RESET IC 1
U4 L7805 1
D1 1N4007 1
Q1 7,3728 MHz quartz 1
R1 8,2k 1
R2 470E 1
LED any LED 1
RTS/DTR 3-pin connector 1
J1, J2, J3 2-pin connector 3
