Walkera QR X350 Pro FPV RC Quadcopter Ilook+ DEVO10 G-2D RX-LCD5802

Description:
Brand Name: Walkera
Item Name: QR X350 Pro
Receiver: RX703a
Main Controller: DEVO-M
Transmitter: DEVO 10 white edition
Battery: 11.1V 5200mAh LIPO
Gimbal support: G-2D
Camera: FPV iLook+ camera

Walkera QR X350 Pro
Main rotor diameter: 556mm
Main rotor blade length: 206mm
Lenght: 289mm
Width: 289mm
Height: 200mm
Brushless motor spec: WK-WS-28-008C
Brushless ESC spec: WST-15A(G/R)
Fight time: 25 minutes
Control distance: up to 2 km / 1.24 miles
Quick and easy assembly.
Completely Ready to Fly.
Gimbal ready for camera anti-vibration 2-axis stabilization (new Walkera G-2D).
First Person View.
FatShark glass compatible.
WIFI option for smart phones.
GPS and “One Key” Return to Home functions.
GPS Auto Pilot functions.
Failsafe auto RTH and Land.
Low voltage protection.
Easy to see with LEDs.
Balance charger with world compatible wall adapter.

Devo 10 White Edition
Control distance: 2KM
Encoder: 10-channel micro computer system.
Frequency: 2.4GHz DSSS
Output power: ≤10mW
Current drain: 200mA(100mW)
Transmitter power supply: NiMH 12V 1600mAh
Output pulse: 1000-2000ms
The DEVO-10 adopts 2.4GHz Direct Sequence Spectrum(DSSS) technology and features automatic
ID binding and ID assignment.It can also be customizedly set as fixed ID code.
USB online update makes you always enjoy the lates programme.
Adjustability of hi-frequency output power enjoys more personality and friendly environment.
Wireless data transmission between two DEVO-10 Helps experience the training function.
Up to 30-model data can be saved.
DEVO-10 adjusting the gyro sensitivity makes hovering flight and fancy flight in an easy way.
Shape design accords with human engineering and provides comfortable holding.
Both the length and tension of the sticks can be adjustable.
DEVO-10 can be freely switched among Mode1,2,3,4.
DEVO-10 is suitable for helicopter and airplane,In the helicopter mode there are three flight modes ,each of which can be freely set and it's parameters can be personalizedly adjusted to meet the requirement for F3C or 3D aerobatic flight.

G-2D Brushless Gimble
Operating voltage: DC7.4-28V (recommended 12V,3S Lipo battery)
Opetating current: 200mA-500mA(depends on the motor power and voltage supplied)
Opetating temperature: -15℃-65℃
Sensor technology: 3-axis MEMS gyro and accelerometer
Max angular rate: 2000°/sec
Max acceleration: 16g
Frenquency: 2000Hz
Motor driven frequency: 46 KHz(no noise smoothing drive)
Control accuracy: 0.1°
Control range: -45°-45°(roll)/-135°-90°(tilt)
Applicable camera: Gopro Hero3
Size: 100mm x 94.5mm x 84mm(LxWxH)
Weight: 120g(Camera not included)
Gopro Hero3 AV Line out
Power voltage compensation available.
Support motor drive side short circuit protection.
Support initial roll and tilt customed.
Support stick rate mode and position mode.
Regular receiver accepted.

RX-LCD5802 5.8GHz LCD Diversity Receiver Monitor
Bulit-in 5.8Ghz Dual diversity receiver automatically for best reception.
Built-in high performance Li-Polymer battery:2450mAH/7.4V.
Work status OSD display: RSSI indication, battery indicator;channel indication
A key to automatic signal search
Support Chinese and English menu
Size: 180mmx120mmx50mm (Note: Sunshield height 28mm)
Working Voltage: DC 7~16V
Power consumption: 650 mA@ 12V (Max)
Working temperature: -10℃~ +65℃

FPV iLook+ cameraDescription:
Brand Name:Walkera
Item Name: iLook+ HD Camera
Low latency and long range FPV
Support 5.8 Ghz wireless video link
Support output Micro SD card
Support G-2D and G-3D brushless gimbal
Quick FPV assembly with built-in video transmitter
Compatible with Fatshark and Walkera DEVO F7
Video Resolution HD 1920*1080P
Video Frame Rate 30FPS
Video Format MOV
Video Compressing Format H.264
Image Pixel 300
Resolution 4032*3024 Pixel
Video Format MJPG
Standby Power Loss 1.33W
Working Power Loss 1.9W
Supply Voltage 3.7V-5V
Working Temperature -10~+70℃
Lens Spec 1/3’’
Lens Angle 170°(MAX)
Weight 125g

Manual of QR X350PRO

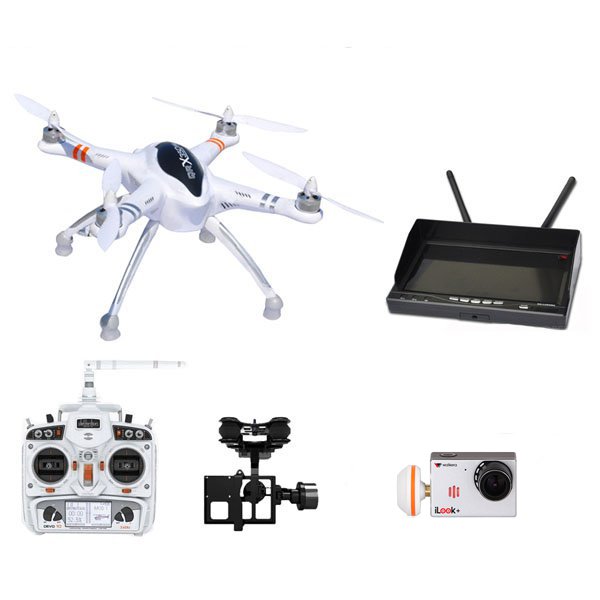

Package Included:
1 x Walkera QR X350 Pro RC Quadcopter
1 x Walkera Devo 10 transmitter
1 x RX703a Receiver
1 x RX-LCD5802
1 x G-2D camera gimbal
1 x FPV iLook+ camera
1 x FPV transmitter mount
1 x battery
1 x charger
