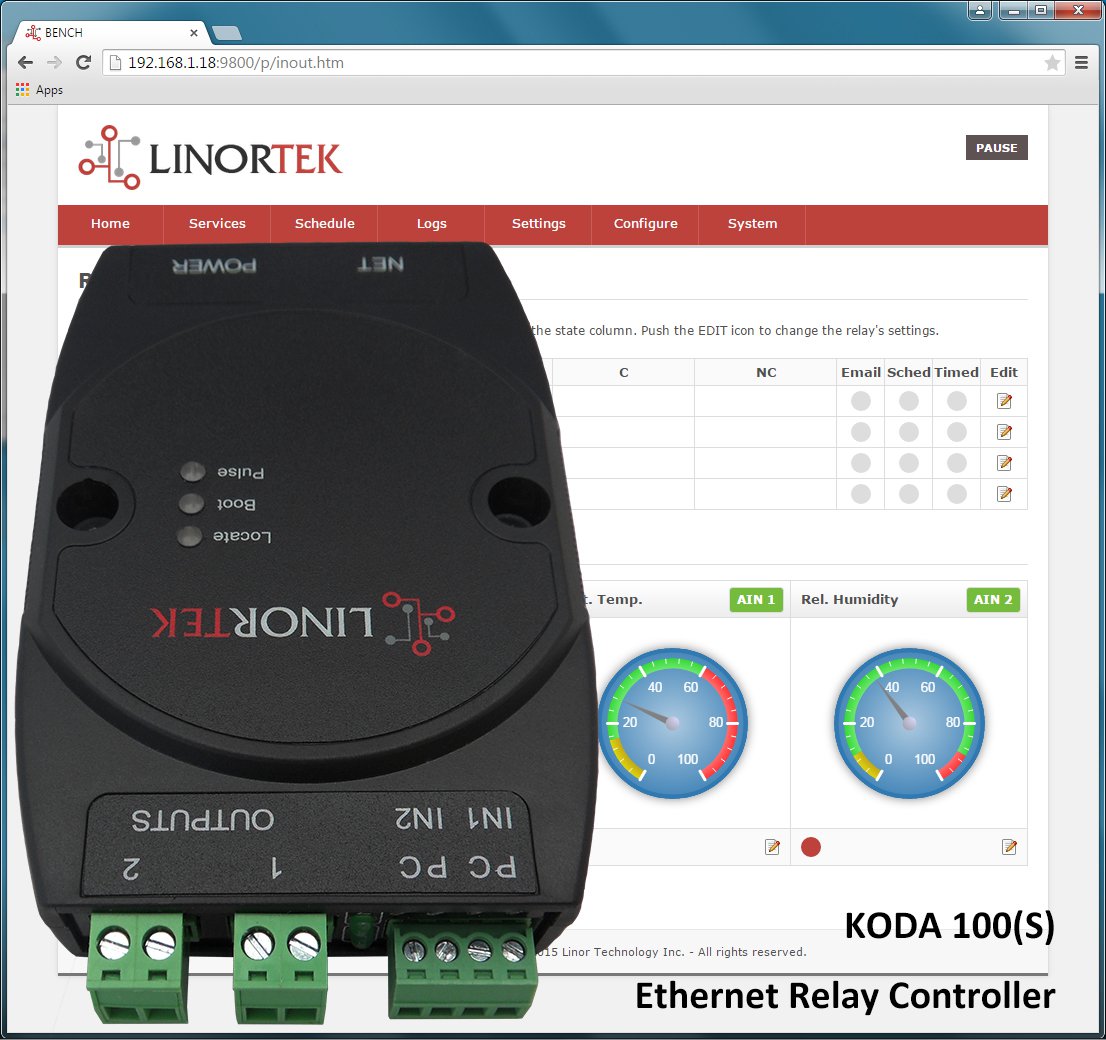

KODA 100 is a web-based Ethernet I/O Controller with real time remote control capability, email alerts of various user selectable events. It is built on TCP/IP platform with a built in web server which allows you to access, control and monitor your equipment over the Internet accurately and easily from anywhere. As part of the software there is a built in scheduler with a simple rule, gives you the ability to have one KODA control another. This capability built into all units allows you to use the input or relay on one device to control a relay on another device over a network, or to take a signal from your main location system, and trigger remote equipment in different locations. KODA 100 is a housed unit with a DIN rail mountable enclosure that can be snapped onto DIN rail or attached to any flat surface such as a wall or under a counter. It has 2 relay outputs (1-Form-A 110/220 10A) which can drive line voltage of devices, 2 optically isolated digital inputs. The digital input data can be used to calculate a range of results such as:

State - This is useful for knowing if an input is on or off, like a door switch being on or off.

Counter- Non-resettable/resettable counter.

Frequency - Counts the frequency of an input in KHz (kilo hertz or1/1000 seconds). This could be useful in displaying a tachometer where 60Hz = 1 RPM.

Period - in 1/1000 seconds an input in kHz (milli-seconds or1/1000 seconds). This would be useful for measuring timed events.

The KODA 100S is ideal for applications that require web remote control/monitoring such as security, access control, industrial equipment monitoring, building automation system, temperature & humidity monitoring, and much more.
