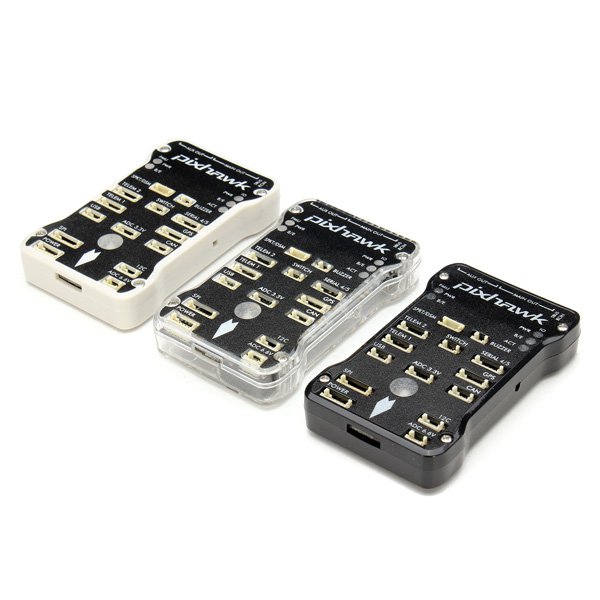

Latest Pixhawk PX4 Autopilot PIX 2.4.6 32Bits APM Flight Controller

Product Advantages:
-Improvements on v2.4.5(added the second PMEG2005CT & 350ma Re-settable Fuse)
- strict accordance with PX4 2.4.6 Schematic
- Redeveloped and optimized circuit without changing any components
- Build in certificate and could use Official MissionPlanner and ECLIPSE for firmware upgrade without clone prompt
-We supply the bootloader in the SD card in case of emergency
-Optimized original case with Polyester carbonate and white transparent case.

Key Features:
- 168 MHz / 252 MIPS Cortex-M4F
- 14 PWM / Servo outputs (8 with fail-safe and manual override, 6 auxiliary, high-power compatible)
- Abundant connectivity options for additional peripherals (UART, I2C, CAN)
- Integrated backup system for in-flight recovery and manual override with dedicated processor and stand-alone power supply (fixed-wing use)
- Backup system integrates mixing, providing consistent autopilot and manual override mixing modes (fixed wing use)
- Redundant power supply inputs and automatic fail-over
- External safety switch
- Multi-color LED main visual indicator
- High-power, multi-tone piezo audio indicator
- microSD card for high-rate logging over extended periods of time

Specifications:
Processor
- 32bit STM32F427 Cortex M4 core with FPU
- 168 MHz
- 256 KB RAM
- 2 MB Flash
- 32 bit STM32F103 failsafe co-processor

Sensors
- ST Micro L3GD20 gyroscope
- ST Micro LSM303D 14 bit accelerometer / magnetometer
- MEAS MS5611 barometer
-InvenSence MPU6000 accelerometer/ gyroscope

Interfaces
- 5x UART (serial ports), one high-power capable, 2x with HW flow control
- 2x CAN (one with internal 3.3V transceiver, one on expansion connector)
- Spektrum DSM / DSM2 / DSM-X® Satellite compatible input
- Futaba S.BUS® compatible input and output
- PPM sum signal input
- RSSI (PWM or voltage) input
- I2C
- SPI
- 3.3 and 6.6V ADC inputs
- Internal microUSB port and external microUSB port extension

Power System and Protection
- Ideal diode controller with automatic fail-over
- Servo rail high-power (max. 10V) and high-current (10A+) ready
- All peripheral outputs over-current protected, all inputs ESD protected

Ships:
Insured Priority Express Mail 6-12 Business Days U.S.,U.K. destinations.
Insured Standard Registered Shipping 7-20 Business Day Delivery most other Destinations.(Expedited 3-6 business Day Delivery Service is available.Email us for latest rate).

Package Includes:
PX4 V2.4.6 Flight board
Teflon safety switch
Buzzer
Original cover
