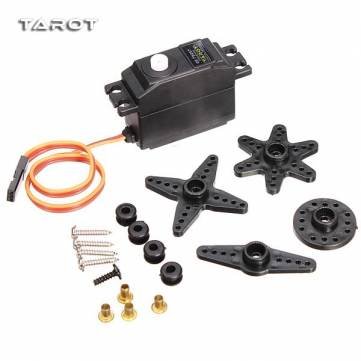

Tarot 450 T9257 Digital Tail Servo 1520us TL2301-01

Description:
Control System: Positive PWM control 1500 usec Neutral
Operating Voltage: 4.8V-6.0V
Operating Temperature Range: -20C~ +60C
Mini Torque: 2.8 kg.cm @ 4.8v 3.4 kg.cm @ 6.0v
Max Torque: 3.8kg.cm @ 4.8v 4.2kg.cm @ 6.0vOperating Speed (4.8V): 0.08 sec / 60 deg at no load
Operating Speed (6.0V): 0.07 sec / 60 deg at no load
No load current:250mA at stopped 300mA at stopped
Loading current:1800mA at no load 2200mA at no load
Life cycle: 15000 times
Angle: 60 +- 10
Motor type: Coreless Motor
Potentiometer Drive: FET Drive
Amplifier Type: Digital Control
Dimensions: 36.0x15.3x21.8 mm
Wieght: 25g
Bearing: Dural bearings
Gear tyep:Plastic
Case type: Nylon plus fiber
Wire length: 280mm
Wire type: 26AWG (wear-resisting silica) (Black: ground, Red: power, White: signal)

Note: This servo control single is 1520us, incorrect setting may damage the servo.
Priority Direct Mail 6-9 business days U.S. & Australia Orders
Standard Registered Air Shipping 7-20 day delivery U.K. and other destinations.
Package Includes:
1 Digital Tail Servo
