Description:

Active power is calculated as: P = U * I * cosφ, cosφ represents the power factor, purely resistive loads (such as incandescent, heater, etc.) the power factor is generally close to 1, inductive and capacitive load load power factor 0-1; therefore purely resistive load test time, P is substantially equal to or close to U * I; test inductive or capacitive loads (such as refrigerators, washing machines, televisions, computers, etc.) when, P Less than U * I As for the specific number to keep the power factor related to power factor different for each appliance, please show table prevail.

Specification:

Apply to power grid voltage range: 110V-220V
Working voltage: 80 ~ 260VAC
Test voltage: 80 ~ 260VAC
Rated power: 100A / 22000W
Working Frequency: 45-65Hz
Measurement accuracy: 1.0

Feature:

Network voltage direct power supply, no external power supply, measurement precision, large-screen LCD liquid crystal screen display clearly.

A. Function

1. electrical parameter measurement function (voltage, current, active power, power).
2. overload alarm function (over power alarm threshold, the backlight and power flicker tips).
3. The power alarm threshold preset function (can set up their own power alarm threshold).
The power button clear function.
5. Power-down data storage function.
6. Large-screen LCD screen full display function (display voltage, current, active power, power).
7. Backlight.

B. Display and key

Display Interface
Display voltage, current, power, energy parameters from the large-screen LCD screen simultaneously.

Display Format

1. Power: measurement range 0 ~ 22kW
1kW display format within 0.0 ~ 999.9W;
From 1kW display format 1000 ~ 9999W;
10kW above the display format 10.0 ~ 22.0kW.
2. Power: measurement range 0 ~ 9999kWh
10kWh within the display format 0 ~ 9999Wh;
Above 10kWh display format 10 ~ 9999kWh;
3. Voltage: Test Range 80 ~ 260V
Display Format 80 ~ 220V
4. Current: Test Range 0 ~ 100A
Display Format 0.00 ~ 99.99A.

Note:

1. This module is suitable for indoor, not outdoor use.
2. applied load can not exceed the rated power.
3. The wiring order can not be wrong.

Package included:

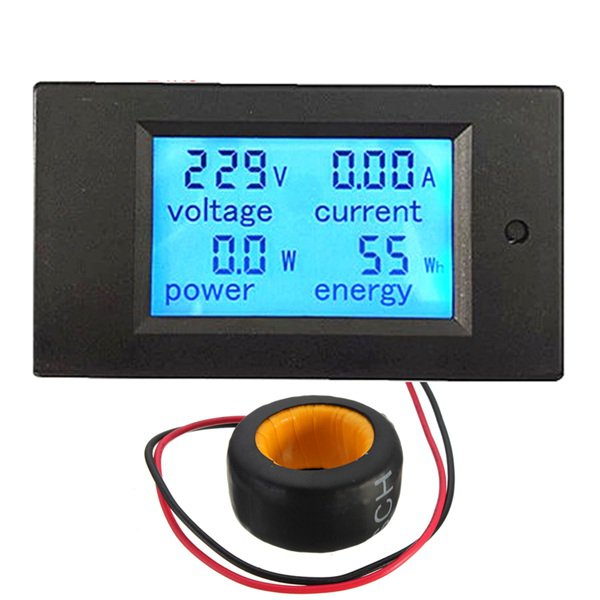

1 x 100A Power Monitor Module AC Meter Panel
1 x CT
