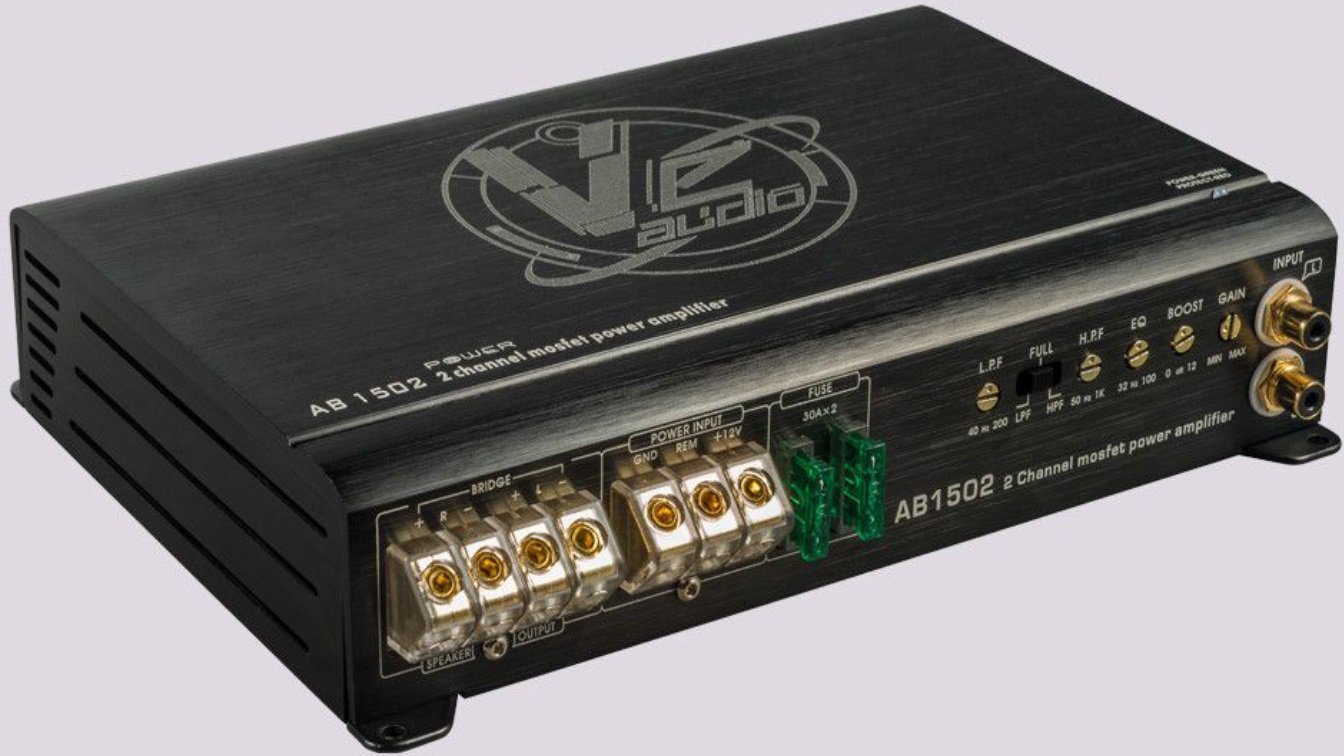

VE-Audio AB150.2 480w 2 Channel Sound Quality Amplifier VE Audio

VE Audio
The Car Audio of High Fidelity
Design By USA, Made in China

Ratings by Manual-
150w x 2 4Ω 14.4v 1%THD
240w x 2 2Ω 14.4v 1%THD
480w x 1 4Ω 14.4v 1%THD
THD- 90dB
Inp. Sens.- 200mV - 8V
Fuse- 30Ax2
Dimensions- 9.06" x 5.91" x 1.89"
Power Supply- 7-16V


Buildhouse Tested Data-
153w x 2 4Ω 14.4v 1%THD
189w x 2 4Ω 14.4v 10%THD
235w x 2 2Ω 14.4v 1%THD
290w x 2 2Ω 14.4v 10%THD
470w x 1 4Ω 14.4v 1%THD
578w x 1 4Ω 14.4V 10%THD
Inp. Sens.- 220mV - 9.5V
THD- 0.35%
FR- =/-2dB 5Hz-69KHz
SNR- 72dB
Power Supply- 7.3-16.0v

Torture Test Parameters-
Shorted Supply to 1.3V - PASS
Overload to 0.47Ω - PASS
Test at 4Ω Bridged 4hrs nonstop - PASS. No protection engaged.
14.4v, 4Ω Bridged, max power, >44hrs non-stop- PASS. No protection engaged.

Protection Parameters-
Thermal- 85C +/- 5C
Thermal Recover- -8C - -15C from 85C +/- 5C
Over V- 16V
Under V- 7V

Warranty- 1 Yr from date of purchase.
