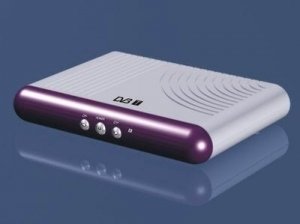

Car digital TV Box with antenna

OSD Menu with 256 full colours, support as many as 12 languages such as English, French, Germany, Spanish, Italian, Greek, Turkish, Farsi, Russian, Chinese, Portuguese, Arabic.



Full functions remote control

Digital audio decoding: MPEG-1

Digital video decoding: MPEG-2



Fully compliant with DVB-T 300 744 standard (European DVB-T standard)

System menu easy to be operated; automatically search in the net when new channel added

OSD Menu with 256 full colours, support as many as 12 languages such as English,
French, Germany, Spanish, Italian, Greek, Turkish, Farsi, Russian, Chinese, Portuguese, Arabic etc.

Support subtitle and OSD teletext (compatible with DVB) display; PAL / NTSC auto-conversion

69 TV channels can be programmed; channels converting time is less than 1 second.

Expended channels editing functions such as re-name, delete, sequence, remove

Parental lock code function, favourite channels list, three different favourite group selectable

Save the last channel automatically, reserve the channel moving system automatically


Provide mobile signal receiving function in car

Full functions remote control

Digital video decoding: MPEG-2 ISO/IEC 13818-2 MP@ML;

Digital audio decoding: MPEG-1

Audio mode: single / dual mono / stereo / joint stereo / S / AC-3 format PDIF;

VHF/UHF input frequency range: 137~820MHz

Input IF bandwidth range: 6, 7, 8 MHz

Demodulation type: COFDM demodulation and FEC programme

Channel bandwidth: 6, 7, 8 MHz

FFT range: 2K/8K

Modulation method: QPSK/QAM-16-64

RF output signal: Pal B/G + I + D/K, NTSC M;

UHF channel output: 21~69 channels; spared channels: 40 channels

Size: 185mm(W)X130mm(H)X30mm(T)
