£713.61
Add to Cart

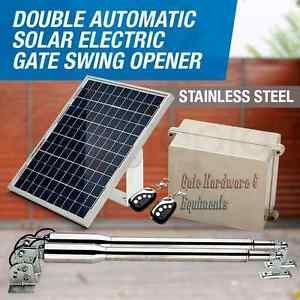

NSEE EM3 Heavy Duty Automatic Dual Swing Gate Opener w/ 22 Watt Solar Panel

More than 10 available
Details
Shipping: United Kingdom: £969.00 (more destinations)
Condition: Brand new
Returns: 30 days, buyer pays return shipping (more)
NSEE EM3 Powerfull Swing Gate Operator can move the heaviest residential gates for your conform, nice look with an aluminum allow for lasting durability, solar capable and many accessories compatible to make this operator the best choice in the market.
1. Manufacturer has patent for manual release mechanism. Use this feature in case of power failure, during installation or maintenance
2. Easy Self-learning feature
3. Commercial power & solar energy power source can be connected at the same time
4. Over current immediate stop function
5. Adjustment time of fast speed & slow speed
6. Adjustment of force during fast speed & slow speed
7. Auto Close function with adjustable closing time delay
8. Single or dual swing
9. Use max up to 50 sets of remote controllers
10. Quality assurance: CE and IP66 certificate obtained
Electrical
Operating Voltage
DC 24v
Electronic Controller
Microcontroller Based
Safety Detection
Over Current Detection
Safety Barrier
Infrared Beam Sensor (Optional)
IP Rating
IP66
Mechanical
Swing Type
EM3 Plus
EM3
EM2
Max. Piston Stroke
450 mm
17.7 inch
350 mm
13.7 inch
200 mm
7.8 inch
Max. Length of Motor
1255 mm
49.4 inch
1030 mm
40.5 inch
730 mm
28.7 inch
Max. Leaf’s Weight
300 kg / Leaf
700 lbs / Leaf
300 kg / Leaf
700 lbs / Leaf
300 kg / Leaf
700 lbs / Leaf
Suitable Leaf’s Length
2 to 3.5 meter / Leaf
6.56 to 11.4 feet’s / Leaf
1.5 to 2.5 meter / Leaf
4.9 to 8.2 feet’s / Leaf
1 to 1.6 meter / Leaf
3.2 to 5.2 feet’s / Leaf
Frame Housing
Stainless Steel / Aluminum Alloy
Driving Method
Screw Driven Piston Type
Stroke Speed
4.5 cm / sec
1.8 inch / sec
Opening Degree
0 to 110 degree
90 Degree Rotation Time
8 to 12 seconds
Temperature
-15⁰ to 55⁰C
5⁰ to 131⁰F
Package Includes:
1. Swing Units (2 Arms)
2. Control Box (1 PC) [Including Control Board]
3. Remote Controller (2 PCs)
4. Mounting Hardware (1 PC Set)
5. Installation Manual (1 PC)
6. 22W Solar Panel
