Basic Kit Includes:

1. Sliding Gate Operator (1) (Set) (110v).

2. Remote Controller (2) (PCs).

3. Internal Hex-angular Bolt (4) (PCs).

4. Internal Hex-angular Bolt (4) (PCs).

5. Left Limit Iron (1) (PCs).

6. Right Limit Iron (1) (PCs).

7. Base (1) (PCs).

8. Release Keys (2) (PCs).

9. Manual (1) (PCs).

10. Magnetic Limit Switch (1) (PCs).

11. Inside Control Board (1) (PCs).





*** One year warranty from the manufacturer ***

*** Life-long repairing with charge offered ***

*** Technical support ***





1. Products introduction

Please read the instructions carefully before proceeding.

MCU is supplied to control the gate operator.

Keypad / single button interface.

Photo beam safety beam interface.

User can select Auto-close function.

Manual key release design for emergency purposes.

2. Important safety information

Carefully read and follow all safety precautions and warning before attempting to install and use this automatic gate operator.

Make sure the Power supply(AC220V or AC110V) of the gate operator is suitable for the power supply in your area.

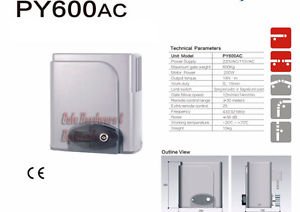

3. Main technical parameters

Type

PY600AC

Power supply

220V, 50Hz

110V, 60Hz

Motor speed

55rpm

66rpm

Rated output power of motor

200W

Remote control operating distance

30m / 100ft (Frequency:433.92mHz)

Remote control mode

Single button

Output shaft height

58.5mm / 2.3inch


Max. gate weight

600Kg / 1400lbs


Output torque

16N·m

Limit switch

Spring limit switch or Magnetic limit switch

Noise

≤56dB

Duty cycle

S2, 15 minutes

extra remote control

20

Environmental temperature

-20°C / 68°F~+50°C / 122°F

Gate Move speed

13m / 43ft /min

15m / 50ft /min
