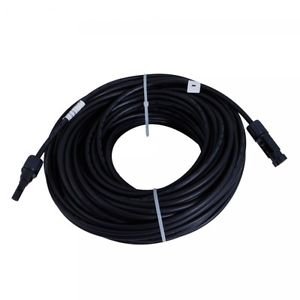

The 100ft AWG 12 solar extension cable with MC4 compatible connector. This is good for connecting solar panels with combiner box, charge controller or between solar panels.
High quality with anti-dust, anti-UV & anti-aging.
TUV approval.Flexible, easy to strip.
Creative technique for conductivity.Short circuit resistance up to +280.High resistance against oil, steam, bacteria & ozone.
Double insulated covering, electron heam, cross linked.
12AWG (4MM2) Solar TUV cables with MC4 compatible connector.High resistance again heat, clod, abrasion, UV, ozone and hydrolysis.
Electron beam cross-linked materials do not melt or flow, even at high temperatures.
Very high mechanical robustness and resistance against water, oil and chemicals.It can be used for off-grid and grid connected PV
Withstanding Voltage:1000V DC
Safety Class:Class II
Ambient temperature Range:-40 ℃~ +90 ℃
Degree of Protection: IP67
Compatible Cable Cross Sections:4mm2and 6.0 mm2
Suitable Cable Outer Diameter Range:φ5mm ～φ7mm
Insulation material: PC
Contact material:Copper, Tin plated
Solar Cable:Cable Size:4mm2 (12AWG equivalent)
Rated Voltage:0.6 AC KV; DC 1.8KVAmbient Temperature Range:-40℃ ~ +125℃Conductor Resistance（20℃):≤5.09Ω/km
Test Voltage6.5 kV/5 min No breakdown
Strand design(No. × (mm)):56/0.30
1 x 100FT 12 AWG Solar Extension Cable With MC4 Male And Female
