Fugeng 12-36VDC 35fts Automatic Safety Photobeam Sensor Photocell Gate Operators

More than 10 available

Details

Shipping: United Kingdom: free (more destinations)

Sales Tax: check

Condition: Brand new

Returns: 30 days, buyer pays return shipping (more)

*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

Description

This is a miniature photo electric safety thru-beam sensor designed for automatic door control and is also similarly suited for other applications such as garage doors, gate operators, etc. as a safety or primary control device where a narrow field of detection is required.

Each set consists of a controller, equipped with one or two pairs of emitter/detector sensor.
Safety Beam for sliding glass door:

1. Power supply: 12V~36V DC;

2. Controller dimension: 123*50*32mm;

3. ABS material;

4. Max range detection: 10m (35ft);

5. Connection wire length: 5m (17ft);

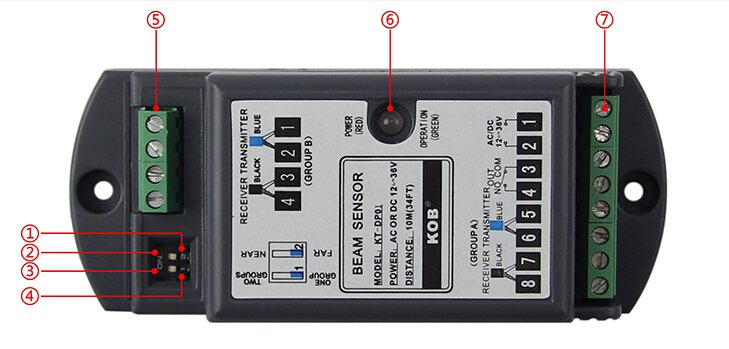

NO 1 is for choosing long detection range;

NO 2 is for choosing shorter detection range;

NO 3 is for dual beam detection;

NO4 is for single beam detection;

NO5 is for sub-beam connection;

NO6 is for power indicator;

NO7 is for power and beam connection;

NO8 is for NO/NC dip switch;
