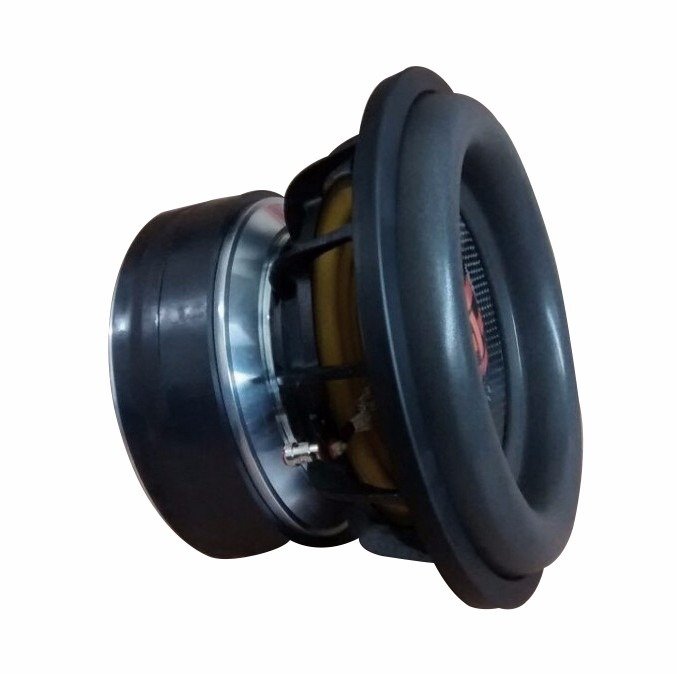

FB Audio FBSW-15-3.0K Single 2ohm 3000wrms

Welcome to SPL-Lab USA Distribution.

We are the only Importer Source for FB Audio in USA, Canada and Mexico.

Available in Custom Single 1ohm or 2ohm voice coil
Single 1ohm model
Carbon Fiber Cone
Carbon Fiber Dustcap
High Density Pressed Foam Surround
Dual coils available for Competition Burp Only
Aluminum Housing

RE- 0.9445 ohms
FS- 34.2899 Hz
Zmax- 21.5847 ohms
Qes- 0.6695
Qms- 14.6304
Qts- 0.6402
EBP- 51.2172 (sealed/ported/4th BP/6th BP)
Le- 1.2707 mH (1KHz)
Diam- 320 mm (12.5984")
Sd- 80424.7707 mm^2 (124.6586 in^2)
Vas- 43.3299 L (1.5302 ft^3)
BL- 11.7838 N/A
Mms- 456.8412 g
Cms- 47.1567 uM/N
Kms- 21205.8887 N/M
Rms- 6.7275 R mechanical
Efficiency- 0.2452%
Sensitivity- 85.9129 dB @1w/1m
Sensitivity- 95.1917 dB @2.83vrms/1m
Krm- 9.049E-03 ohms Freq Dependent Resistance
Erm- 698.394E-03
Kxm- 33.219E-03 Henries Freq Dependent Reactance
Exm- 617.267E-03
Xmax- 25mm

----------------------------------------------------------------------
Ftest- 28.750 Hz
Ftest/Fms- 0.8385
Test Mass Used- 193.0000 g (38.6 nickels)
Test Mass (Ft=Fms*0.90)- 107.160 g
Test Mass (Ft=Fms*0.75)- 355.321 g
