Features
It can connect with wifi at home and achieved two-way intercom between door camera and cell phone.

When Visitors press door bell .door bell sounds and meanwhile camera will start to work and send real-time video and call to smart phone .

User receive the call and see the video who is outside and can Intercom with visitors and remotely unlock door etc.

Wifi Video Door Phone have features such as alarm and motion detector,home security has more powerful barrier

Advanced Infrared light design make users can distinguish the visitors in the evening.
AC/DC power supply,eliminates the headache of frequency battery replacement.
2. 4G wifi transmission systems.realtime video transmission,Audio and video data transmission up to 100M at most.
One outdoor camera can support multiple cell phone .make you see the outdoor at any time anywhere with wifi/3G/4G .
APP to smart phone / tablet PC (Android and IOS).
Take photo and video on the smart phone.
Monitor, intercom, unlock on the smart phone.
Outdoor device can connect to internet by both wifi and internet cable.
Rainproof cover camera, IP65 Waterproof.
Remote unlock the electornic lock by phone.
Hidden RFID card reader, support unlock door locally. One doorbell support up to 500pcs users card.
Two way unlock door: RFID card unlock door remotely; Mobile phone unlock door remotely.

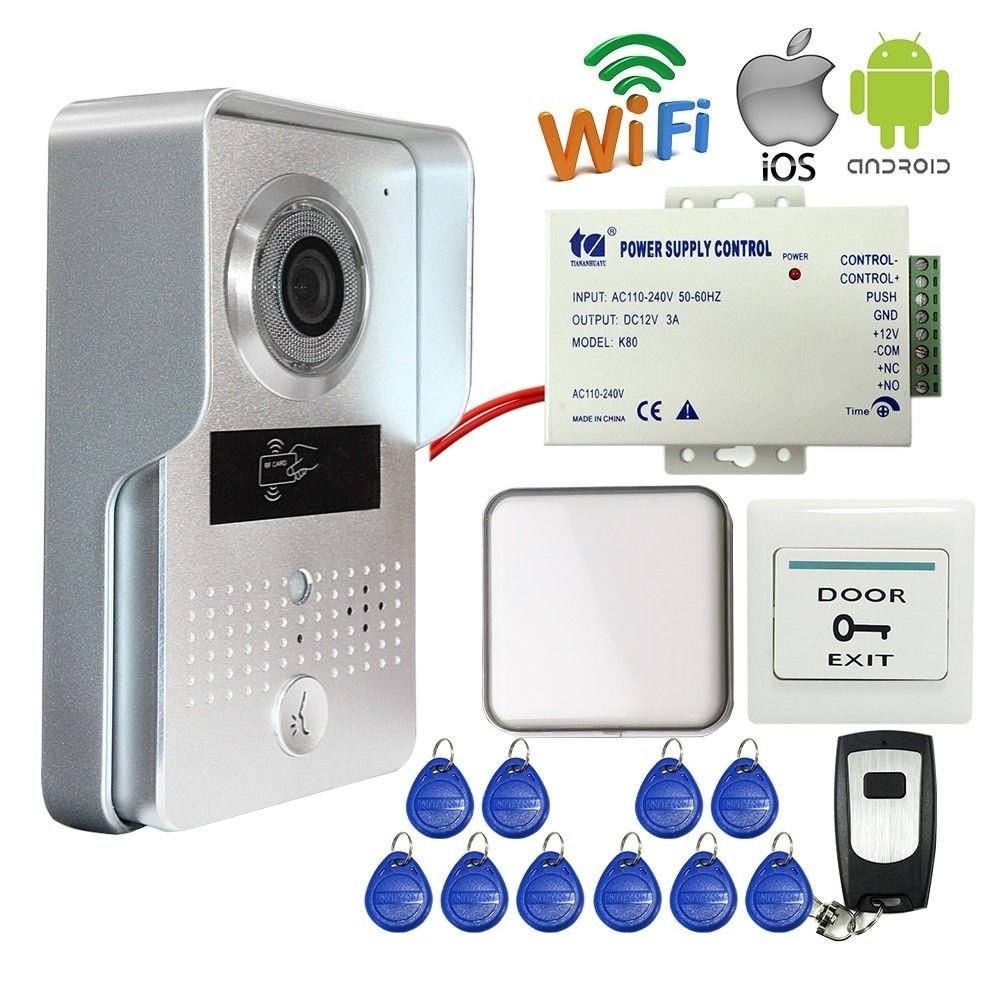

12 PCSRFID cards:

There are several ways to open the door lock when you are outside the door: using the RFID keyfobs. This item comes with 12 RFID keyfobs (including added keyfob and deleted keyfob) . Besides, if you need more RFID keyfobs, you can add the quantity of the RFID keyfob as you like.

Two are management cards : one card is used to add users; another card is used to delete users.
Management cards can not used to unlock door.
The last card is the user card, it can unlock door. If you need one more RFID cards, please feel free to contact us.


Function








Installation




Details
AD-0-Silver


602A-2

Indoor bell:
Power switch to the ON position. Working lights flash one time.
Repeat match, ID into the second and the third group, and so on.
38 music ringtonges, click on the roof can switch ringtone.
Can match three WIFI doorbell.
Once press the WIFI doorphone can call buttons, indoorbell will ring.
dingdong



Remote Control
when you want to go out, you just need to click this Remote control, then you can go out. This remote control kit works within 20m in open air.






Power supply

This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.



It controls electric lock directly.

Can reduce the load of access controller, save wiring to reduce the hidden trouble

Based delay control circuit, lock time can be in 0-15 seconds

Automatic protection function, unexpected situations such as when the power supply
short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off

Operative device: E/M Lock, Access Controller, Exit Push Button.
power supply controller-2
Electric Drop Bolt lock
Specification
1.POWER

Power Input: 12V@1A
unLock Output: 12VDC
2.Operation Conditions

Operating Temperature : -10C~ +55C
Operating Humidity: 10~90% (Non Condensing
3.WIFI Part

Standard: IEEE 802.11 b/g/n
Mode: DSSS/CCK 11Mbps
Channel Frequency: 2412~2484 MHz
RX Sensitivity: -85 dBm
TX Power: +16 dBm
EVM: -22 dBm
4.SENSOR

Size:: 1/4”
Pixel: 0.3M
Lens Angle: 110°
Aperture: F2.0mm
Night Vision: 6*940NM IR LED
5.General

Dimension: 160x90x30mm

Weight: 1.0kg

Package
