Dual Swing Gate Operator is designed for residential / commercial applications. Stay warm and dry in your vehicle. This dual swing gate opener will handle dual swinging gates up to 5meter (2.5meter per leaf) in length and weighing up to 500KGS.(250KGS per leaf) Swing Gate Opener has a powerful 24VDC motors,which provide exceptional starting torque and features soft start/stop operation.This promotes longer gate and operator life,as well as dependable performance.All the gate openers supplied are pre tested and of good quality long lasting and have a 12 Months back to base warranty on the complete system.
This dual arms swing gate opening system is a robust, tough, long lasting. The motor can handle light/Medium/Heavy gates. The PKM-C01 swing gate operators is a sleek design telescopic linear screw type actuator that is made of stainless steel with a cast alloy motor housing. The two motors are constructed of metal (no plastic, fiber or nylon).
The swing gate opener is built-in with an emergency manual override on each actuator to allow the user to open the gates manually in case of an emergency such as a power failure situation.
1. Easy to install and operate,and easy to connect wired.
2. Open and close the gate by remote control and keypad.
3. Time promotion function. When gate is open, speed is slow, then a little quick, and when close the door, speed is slow again.
4. In case of power failure,release the clutch easily,and can operate the gate manually.
5. Working life about 5 years.
7. Stop working when gate meets with obstacle.
8. Rod's max travel is 300mm.
9. Motor's Power : 24VDC 40W
10. Running Speed :1.6cm/s
Controller can connect flashing light, and photocell, and back up battery, and keypad and so on.
Controlling single or double-leaf motor is optional.
Can adjust open and close door time.
24VDC back-up battery can be connected.
High speed operate can be adjusted.
Set extra remote control is easily, up to 30pcs remote control.

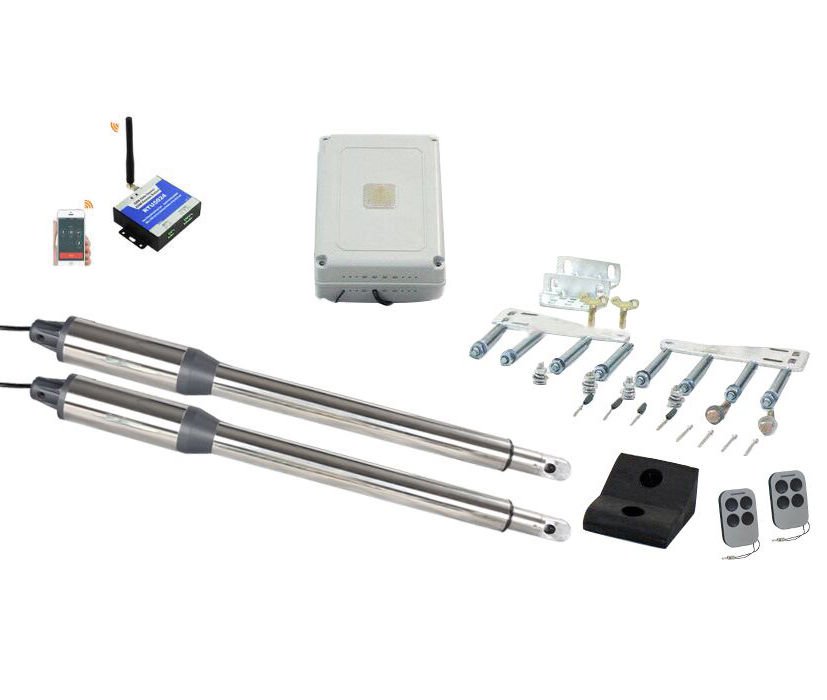

2 x DC gate motor that are pre-wired with motor cables
2 x Override spanners
2 x Remote controls
1 x Control panel
2 x Post mounting bracket
2 x Gate mounting bracket
1 x Rubber Gate Stop
1 x Instruction manual
1 x GSM
