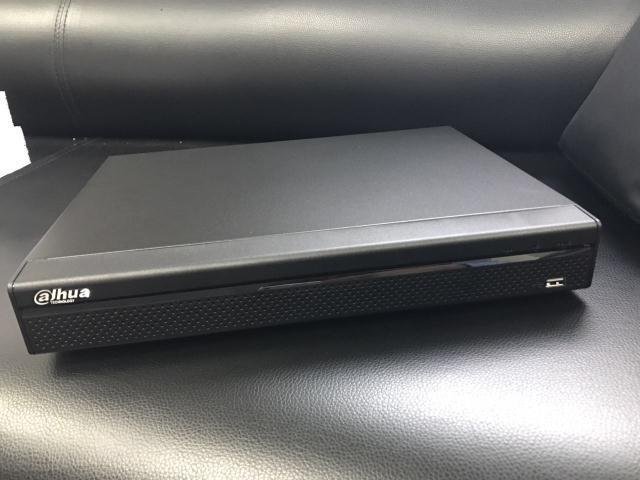

XVR4104/08/16HE
4/8/16 Channel Penta-brid 720P Mini 1U Digital Video Recorder
>Embedded processor
>Support HDCVI/AHD/TVI/CVBS/IP video inputs
>Max 5/10/18 channels IP camera inputs
>Long transmission distance over coax cable
>Support 1 SATA HDD, up to 8TB



System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Display

Interface

1 HDMI ,1 VGA

Resolution

1920×1080, 1280×1024, 1280×720, 1024×768

Multi-screen Display

4CH: 1/4/6

8CH: 1/4/8/9/16

16CH: 1/4/8/9/16/25

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering

Alarm input

8/8/16

Relay Output

3

Playback and Backup

Playback

4CH: 1/4

8CH: 1/4/9

16CH: 1/4/9/16

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

1 SATA Port up to 8TB capacity

eSATA

N/A

Auxiliary Interface

USB

2 USB Ports (2 USB 2.0 )

RS232

N/A

RS485

1 Port, for PTZ Control

Third-party Support

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Audio and Video

HDCVI Camera Input

4/8/16 Channel

IP Camera Input

4+1:each channel up to 2MP

8+2/16+2:each channel up to 5MP

Audio In/Out

4/8/16 Channel Input, 1 Channel Output, RCA

Two-way Talk

Reuse audio in(channel 1)/out, RCA

Recording

Compression

H.264

Resolution

1080N,720P, 960H, D1, HD1, BCIF, CIF, QCIF

Record Rate

Main Stream:

4CH:1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)

8/16CH:1080N(12fps)/720P(15fps)/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)

Sub steram:4CH:CIF/QCIF(1~15fps)

8/16CH:CIF/QCIF(1~7fps)

Bit Rate

1Kbps ~ 6144Kbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Network

Interface

1 RJ-45 Port (100M)

Network Function

HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.42, CGI Conformant

Electrical

Power Supply

DC12V/2A

Power Consumption
