HLK-SW16 16 Channel Android/Smart Phone CWiFi Relay /WiFi Relay Module

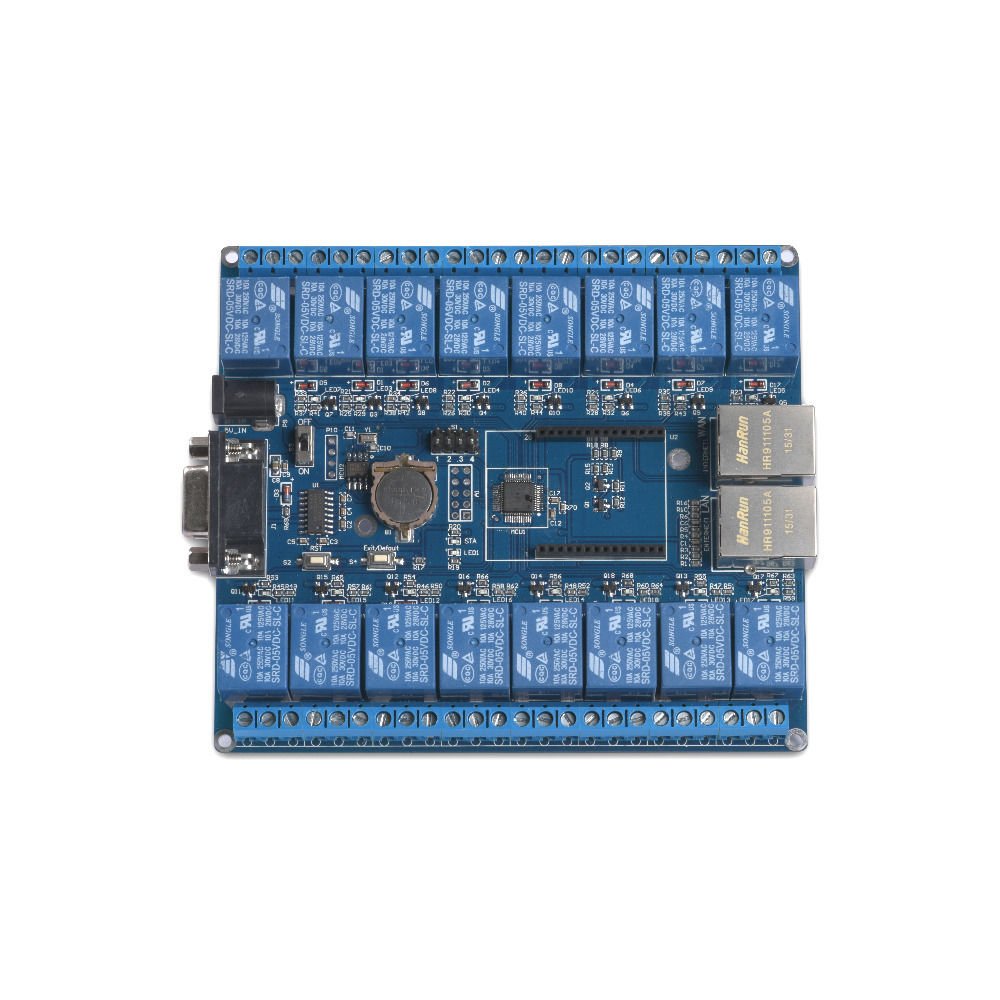

Notice: The item include one HLK-RM04-E module with p2p function, one 10cm flexible antenna, one 16 channels test board with one RS232 serial port two RJ45 ports, one 5V 2A power supply and one ethernet cable.
5.Need no driver, just use as the normal serial port for users' PC
7.Support TCP Server/TCP Client/UDP Server/UDP Client work mode
Compared with the traditional way( dynamic domain name plus router port mapping), it has incomparable superiority, eliminating the need for users to apply for a dynamic domain name, make frequent operations, such as port mapping on the router, so that equipment can achieve plug and play result
Full function of wireless router: Support 5 types of work mode: AP, Client, Repeater, Bridge, Router
AP mode: Default work mode. In this mode, the device works as a wireless access point, support for plug-and-play, and no configuration needed.
Router mode: In this mode, the device is equivalent to a wireless router, wired interfaces can be used as WAN, wireless used as LAN. Multiple wireless clients can share a broadband line to search the Internet.
Repeater mode: Use the radio relay function of the device, achieve the radio signal repeat and amplified, and form a new radio coverage area, ultimately attain the purpose of extending the coverage of the wireless network.
Bridge mode: With the Bridging function of equipment, firstly, the module RM04 establish a wireless connection with the front-end wireless network itself ,then sending the wireless signal, at the same time, form a new wireless coverage, signal weak and signal blind spot can be solved effectively.
Client mode: The AP to work in this mode for the main AP is a wireless client, the equivalent of a wireless network card.
