I.Main Features

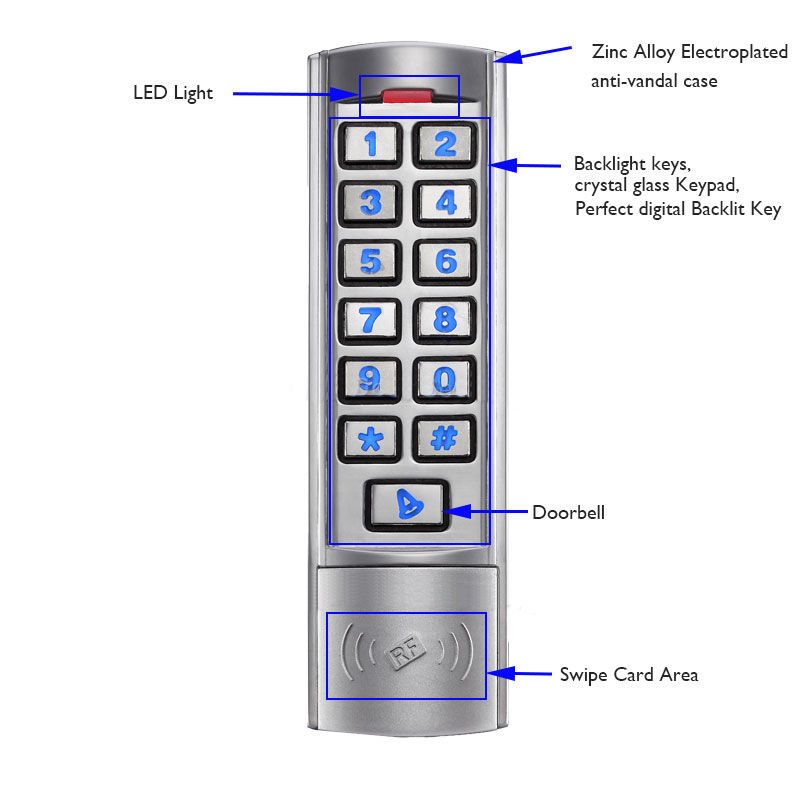

The unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader.

It is suitable for mounting either indoor or outdoor in harsh environments.

It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in either a bright silver or matt silver finish.

The electronics are fully potted so the unit is waterproof and conforms to IP68.

This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option.

The inbuilt card reader supports 125KHZ EM cards,IF you need 13.56MHz Mifare cards.Please contact us!

The unit has many extra features including lock output current short circuit protection, Wiegand output , and a backlit keypad.

These features make the unit an ideal choice for door access not only for small shops and domestic households

But also for commercial and industrial applications such as factories, warehouses, laboratories, banks and prisons.

II.Features


Waterproof, conforms to IP68
Strong Zinc Alloy Electroplated anti-vandal case
Full programming from the keypad
2000 uses, supports Card, PIN, Card + PIN
Can be used as a stand alone keypad
Backlight keys,crystal glass Keypad,Perfect digital Backlit Key
Wiegand 26 input for connection to external reader
Wiegand 26 output for connection to a controller
Adjustable Door Output time, Alarm time, Door Open time
Very low power consumption (30mA)
Fast operating speed,
