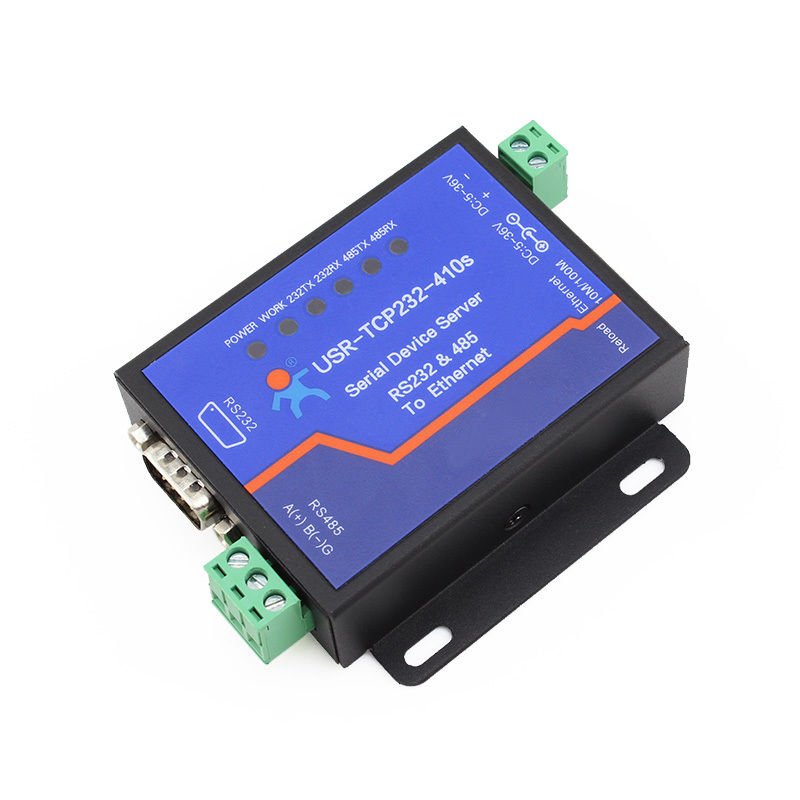

Serial Device Server Introduction This is a serial rs485&rs232 to Ethernet server, used for data transparent transmission.USR-TCP232-410S is a dual serial server, which supports rs232 & rs485 working at the same time. It is based on Cortex-M4 solution And the internal of the serial server integrates TCP/IP protocol stack.Besides,USR-TCP232-410S has the function of terminal power supply.Serial Device Server FeatureMultiple indicator lights for convenient debuggingPower-line terminal for industrial applicationARM kernel and TCP/IP protocol stackAuto-MDI/MDIX,RJ45 port with 10/100MbpsTCP Server,TCP Client,UDP,UDP Server and HTTPD Client work modeTwo ports can work independently at the same timeSupport virtual serial port and provide corresponding software USR-VCOMSerial baud rate from 600bps to 230.4K bps;Check bit of None,Odd,Even,Mark and SpaceDNS and DHCP supportedProvide PC TCP/IP SOCKET programming example,VB,C++,Delphi,Android,IOSBuilt-in webpage;also can customize webpage for usersReload button,one key to restore default settingsRJ45 with Link/Data indicator light,built-in isolation transformer and 2 KV electromagnetic isolationThe global unique MAC address bought from IEEE,user can define MAC addressSupport upgrade firmware via networkSupport keepalive,rapidly detect dead linksSupport account and password,can be used to page login and network settingsSupport one channel Websocket,realize buyirectional transparent transmisison bewteen webpage and serial 0Support Modbus RTU to Modbus TCPSupport UDP broadcast function,send and receive data from all ip in the networkSerial Device Server Application FieldIndustrial data transmission, industrial automationsecurity and protection monitoring, public securitySmart home, power control, environmental monitoring, intelligent agricultureDoor check on work attendance system,POS system, rice selling systemBuilding automation system, power monitoring, self-service banking system, telecom machine room monitoringSerial Device Server Function Serial Device Server Serial Feature Serial Device Server Network Feature Serial Device Server Software Function Serial Device Server Application Serial Device Server Images
