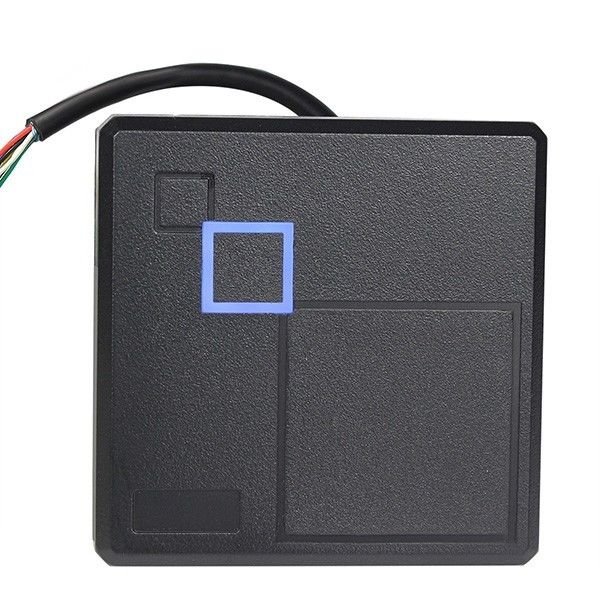

Sebury F1707A Access Control RFID Reader Card Proximity Wiegand 26 Weatherproof

When the card approach the reader, the red light turn into green, after glinting to turn red color again, the buzzer sound shows transiting data. It has 500ms proximity time distance for card proximity. After finishing card proximity, if the same ID card is still in the proximity range, reader will not send out the data, neither giving any sound hint. But for Different ID card entering Proximity Area, Reader can do response continually and send out the data

Features:
Built-in Antenna
Built-in LED (Double Color LED)
Built-in Loud Speaker (Buzzer)
DC 12V Working Voltage, 70mA Working Current
100 Meters Communication Distance
Real Time Data Transfer
Stylish new exterior design
Stable performance, strong resistance to metal shielding and interference.
Advanced anti crash circuit design, reverse voltage input protection function
Waterproof, anti heat, anti miss-connecting protection
Wiegand 26bits/ Wiegand34bits Standard Format Data Output
Less than 0.2 second Response Speed
Less than 0.5 seconds Proximity Time Distance:
2-15cm Proximity Range
Support UEM 4100 ID Card
Black Color
PVC Case Material (Black Resin for Water-Proof Function)
Specifications:

Model

Card Reader Access Control

Color

Black

Voltage

DC9~16V

Current
