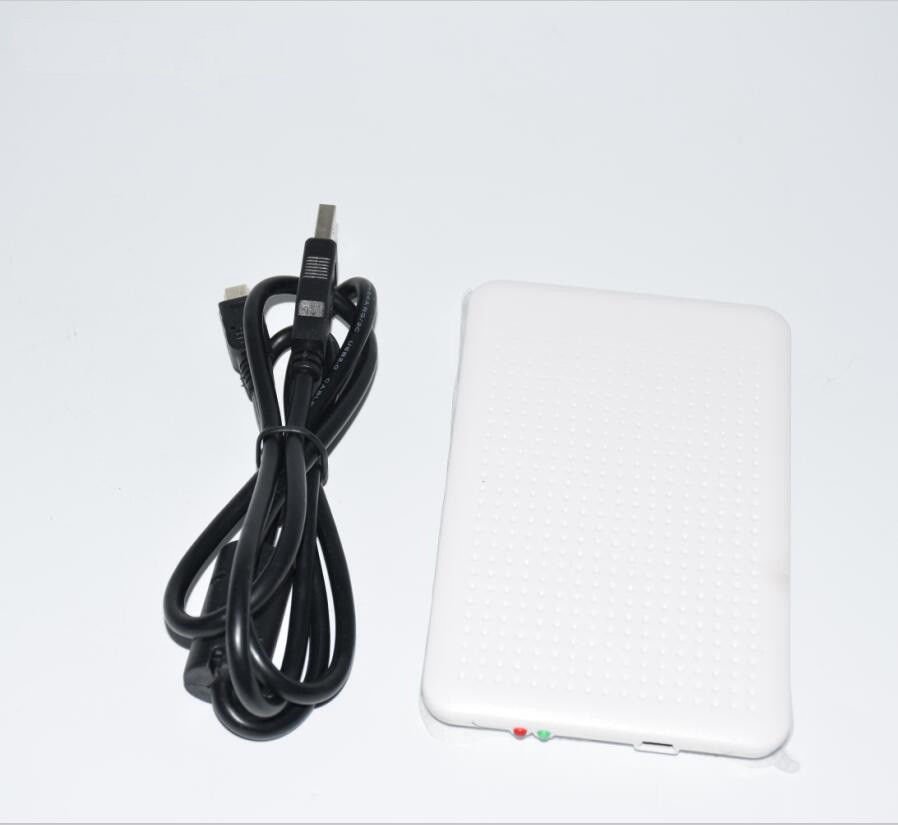

High performance Multiple Protocol UHF RFID writer. It is designed upon fully self-intellectual property. Based on proprietor efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system



FEATURES

1. Self-intellectual property;

2. Support ISO18000-6B, ISO18000-6C (EPC C1G2) protocol tag;

3. 902~928MHz. 860~868Mhz frequency band(frequency customization optional);

4. FHSS or Fix Frequency transmission;

5. RF output power up to 10dbm (adjustable);

6. No external power source needed;

7. Built-in antenna with effect distance up to 200mm*;

8. Support USB1.1 interface with VSP (Virtual Serial Port) or HID mode;

9. Slim outline;

10. Provide SDK and demo software to facilitate further development.

* Effective distance depends on protocol, tag and environment.



CHARACTERISTICS

l Absolute Maximum Rating



ITEM

SYMBOL

VALUE

UNIT

Power Supply

VCC

6

V

Operating Temp.

TOPR

-10~+60

degree

Storage Temp.

TSTR

-25~+80

degree





l Electrical and Mechanical Specification

Under TA=25 degree, VCC=+5V unless specified



ITEM

SYMBOL

MIN

TY P

MAX

UNIT

Power Supply

VCC

4.5

5

5.5

V

Current Dissipation

IC



120

200

mA

Frequency

FREQ

902



928

MHz

Effective Distance*

Dis

0

100

200

mm



* Effective distance depends on protocol, tag and environment.
